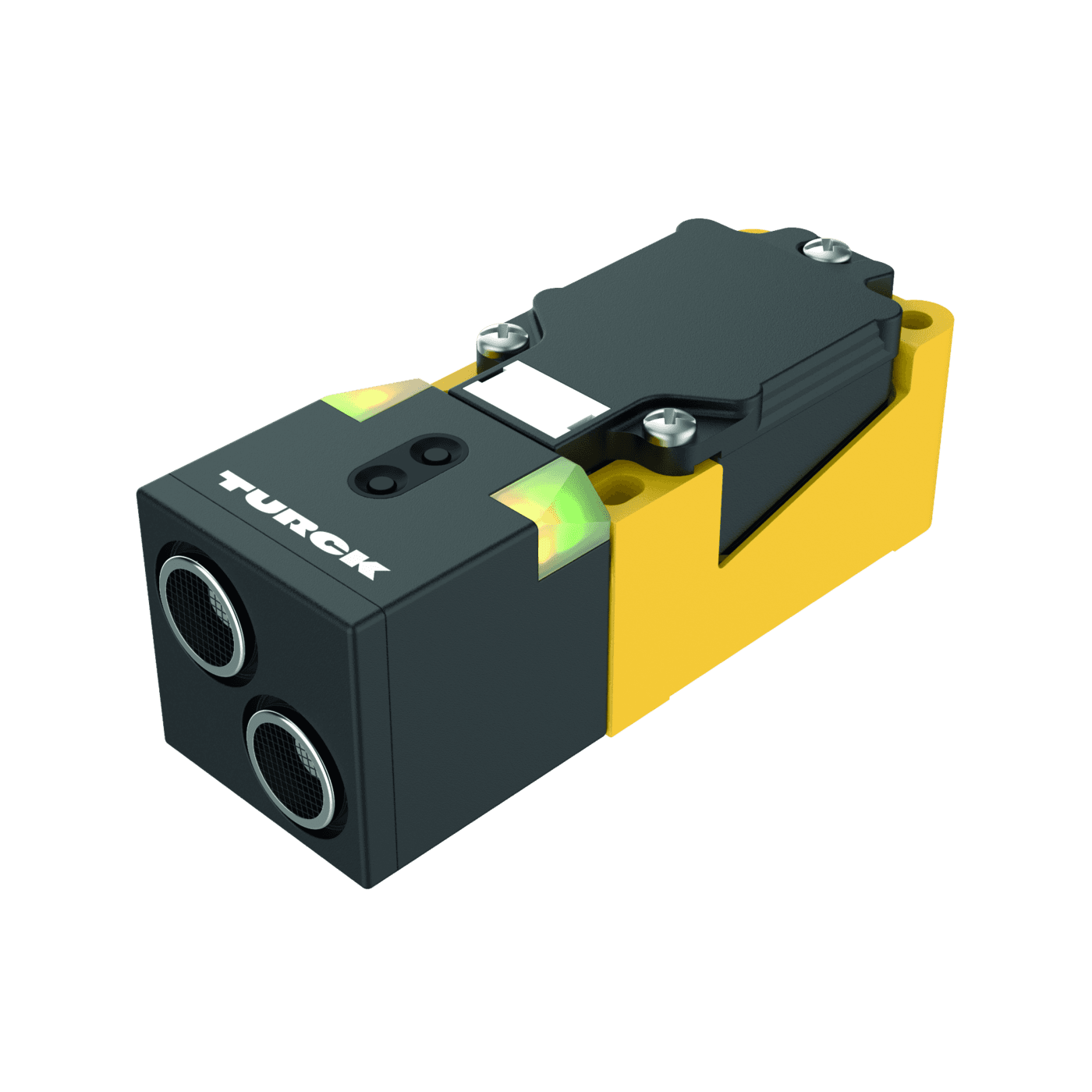

Ultrasonic Sensor
RU200-CP40-LIU2P8X2T
Order ID no. 1610054
In Stock
home
Turck-Shop
Sensors
Ultrasonic Sensors
RU200-CP40-LIU2P8X2T
Technical Data
Downloads
Special features
Pushbutton
Detection type
contactless
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
0
Electrical connection
Terminal chamber
Connector type
Terminal box with cable gland
Design
Rectangular

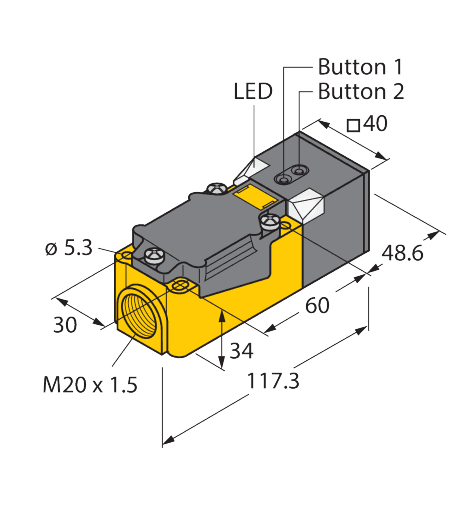

Dimensions
166 mm x 40 mm x 40 mm
Housing material
Plastic
Housing quality
PBT-GF30-V0
Medium
liquids, Bulk goods
Function
Proximity switch
Operating mode
Time-of-Flight
Output function
PNP
Measuring principle
Ultrasonic
Protection class
IP40
Max. range (mm)
2000
Resolution
1 cm
Setting option
Push Button
Switching element function
NO/NC
Radiation direction
straight
Key Features
Electrical connection
Terminal chamber
Output function
PNP
Max. range (mm)
2000
Group
D2
List Price
SEK 4,389.00
Item Total
SEK 4,389.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
