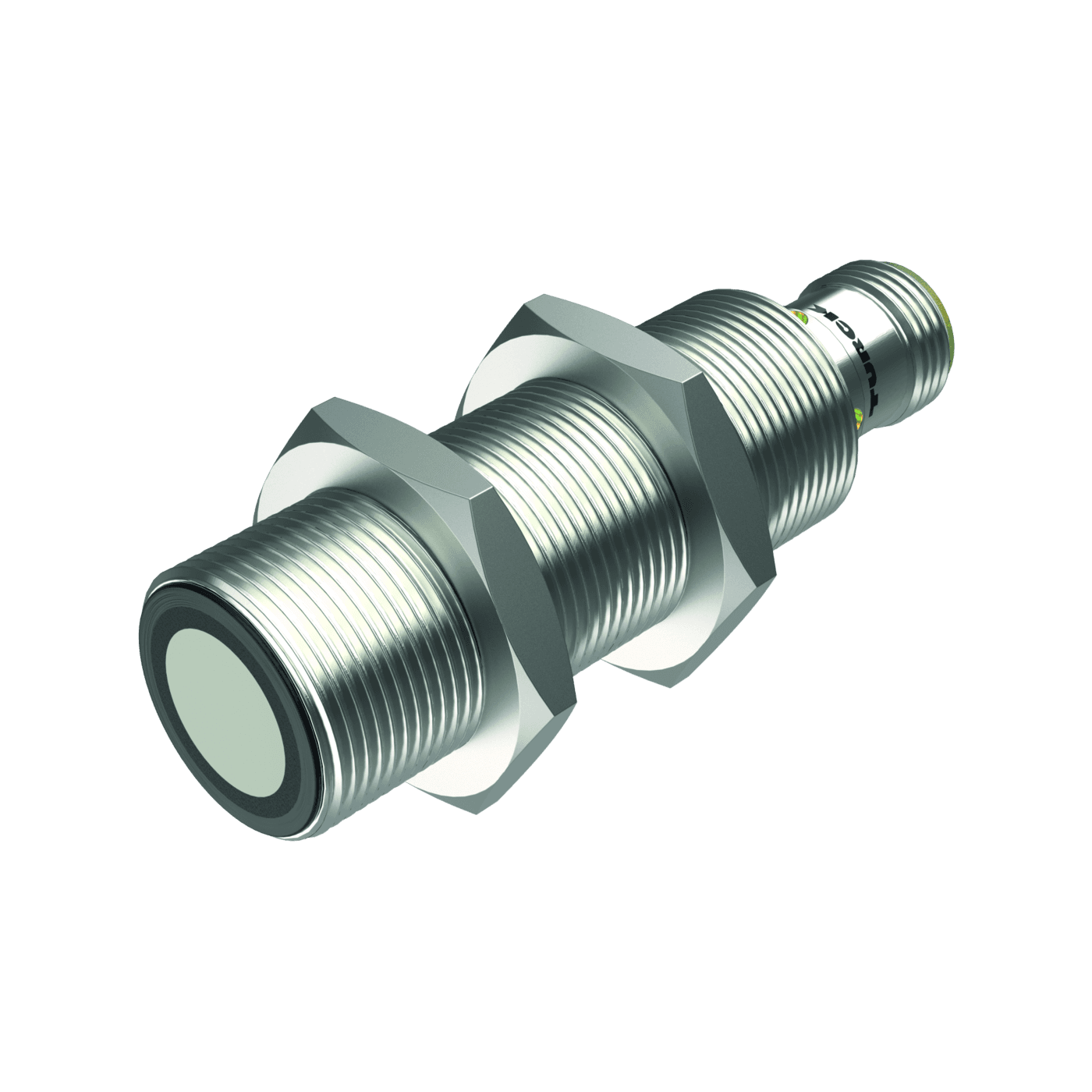

Ultrasonic Sensor
RU40U-M18M-UP8X2-H1151
Order ID no. 1610008
In Stock
home
Turck-Shop
Sensors
Ultrasonic Sensors
RU40U-M18M-UP8X2-H1151
Technical Data
Downloads
Special features
Compact
Detection type
contactless
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Electrical connection
Connector
Connector type
M12 x 1

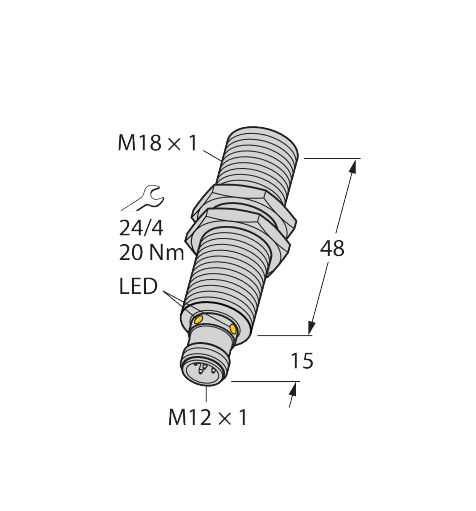

Design
Threaded barrel
Construction size
⌀ 18 mm
Dimensions
63 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Nickel Plated
Medium
liquids, Bulk goods
Function
Proximity switch
Operating mode
Time-of-Flight
Output function
PNP
Measuring principle
Ultrasonic
Protection class
IP67
Quality active face
Epoxy
Max. range (mm)
400
Resolution
0.5 mm
Setting option
Remote Teach
Switching element function
NO/NC
Radiation direction
straight
Key Features
Electrical connection
Connector
Output function
PNP
Max. range (mm)
400
Group
D2
List Price
SEK 1,927.00
Item Total
SEK 1,927.00
