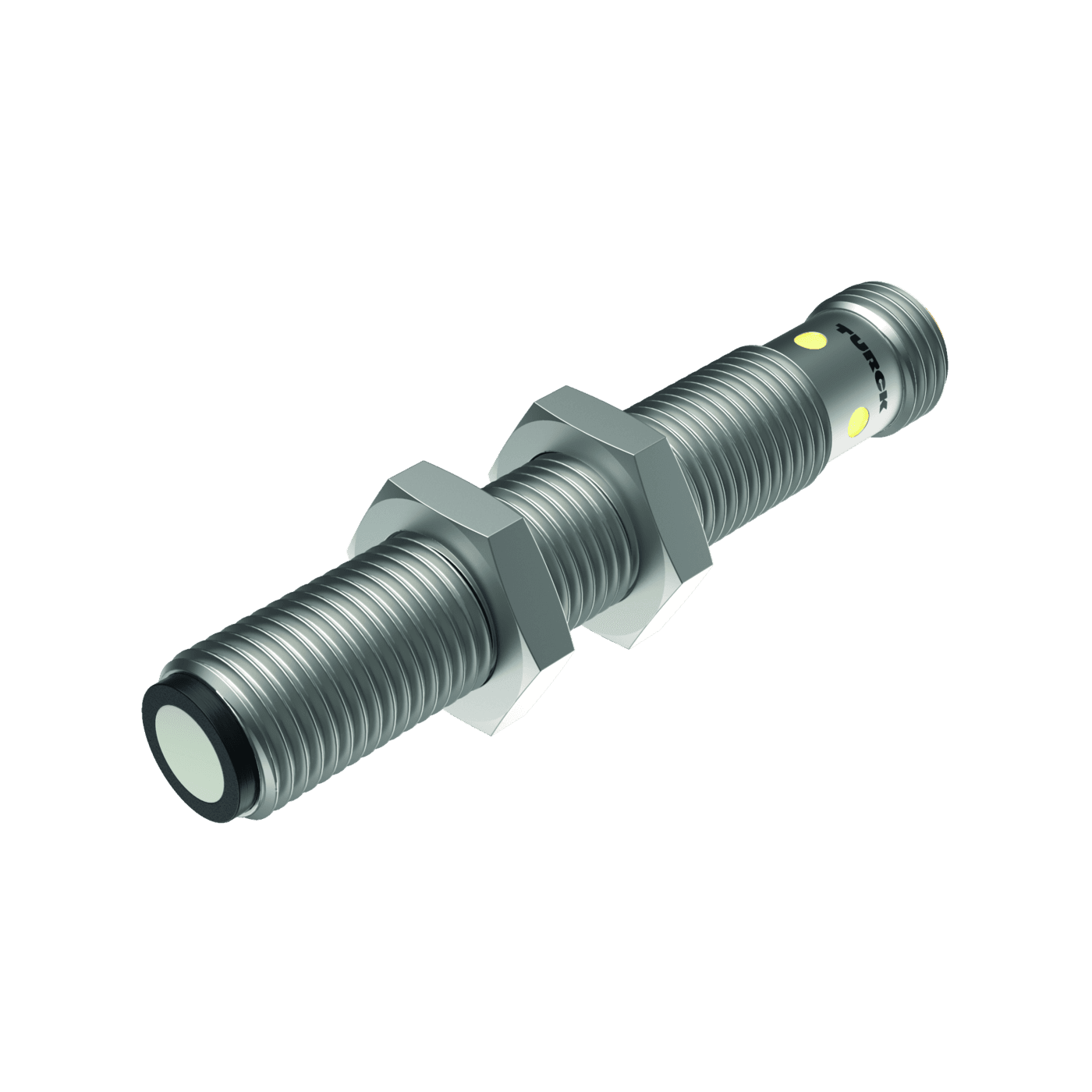

Ultrasonic Sensor
RU20U-M12-LI8X2-H1141
Order ID no. 100000280
In Stock
Group
D2
List Price
SEK 2,965.00
Item Total
SEK 2,965.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-10
Connector type
M12 x 1
Construction size
⌀ 12 mm
Design
Threaded barrel
Detection type
contactless
Dimensions
72,5 mm
Electrical connection
Connector
Function
Proximity switch
Housing material
Metal
Housing quality
CuZn
Housing surface
Chrome-plated
Max. range (mm)
200
Measuring principle
Ultrasonic
Medium
Bulk goods, liquids
Operating mode
Time-of-Flight
Output function
Analog output
Protection class
IP67
Quality active face
Epoxy
Radiation direction
straight
Resolution
0.5 mm
Setting option
Remote Teach
Key Features
Electrical connection
Connector
Output function
Analog output
Max. range (mm)
200
