PT600R-2008-I2-DA91 | TURCK - Your Global Automation Partner
Pressure Transmitter

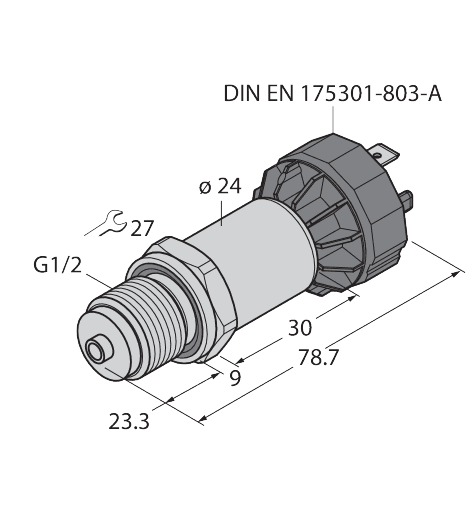

PT600R-2008-I2-DA91
Order ID no. 6836659
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101401066
Electrical output
Current output (2-wire)
Gross weight
178
Height
40
Length
155
Net weight
178
Dimension unit
MMT
Weight unit
GRM
Volume
527
Volume unit
CMQ
Width
85
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Approvals
cULus
Electrical connection
Connector
Connector type
DIN EN 175301-803 Form A
Design
Without display
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer
Stainless steel 1.4435 (AISI 316L)
Process connection
G 1/2” male thread, rear sealing and manometer (combi)
Media temperature max. (°C)
135
Media temperature min. (°C)
-40
Pressure range
0...600 bar
Operating voltage
DC
Output function
Analog output current
Pressure type
Relative pressure
Protection class
IP65
Key Features
Electrical output
Current output (2-wire)
Process connection
G 1/2” male thread, rear sealing and manometer (combi)
In Stock
Group
J1
List Price
SEK 1,566.00
