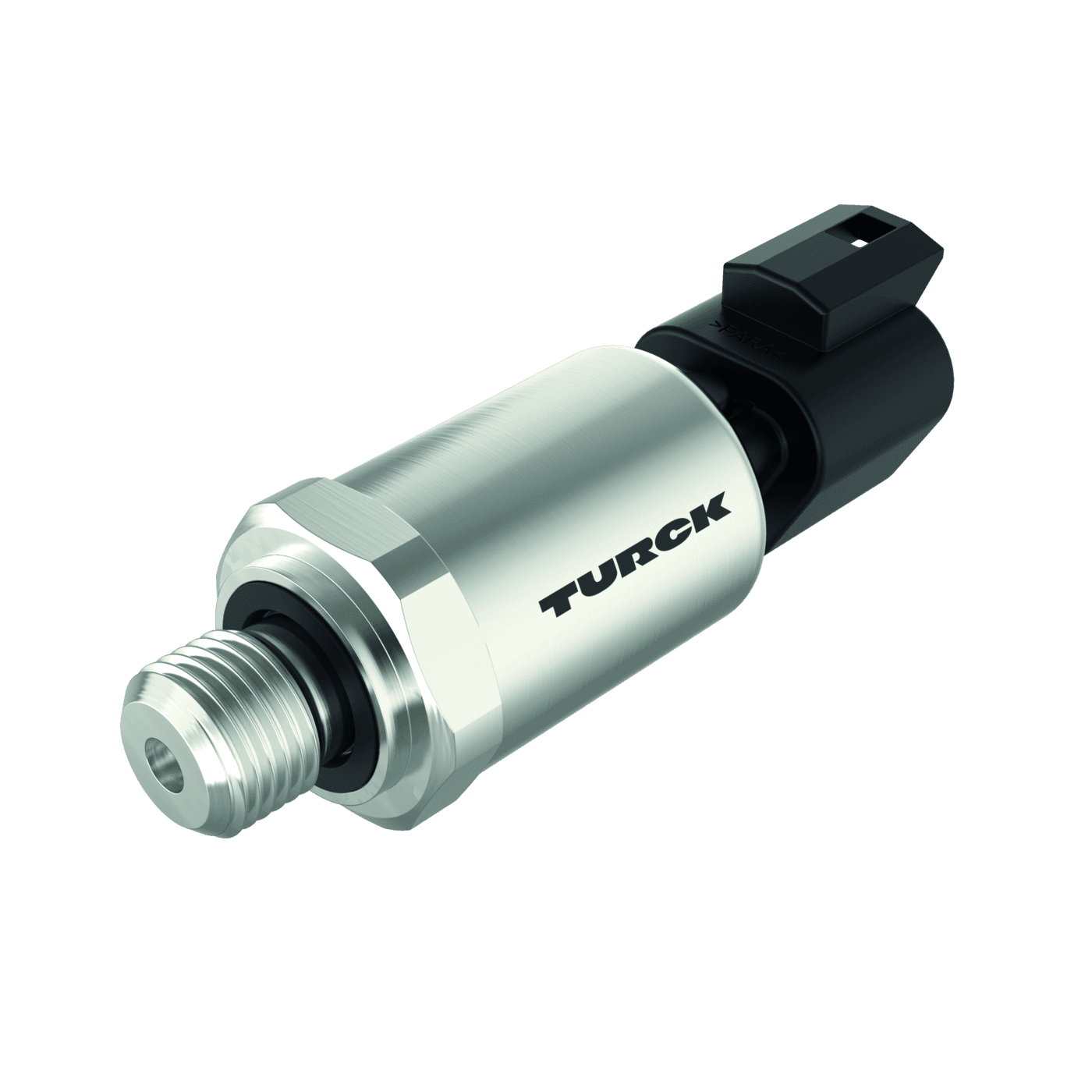

Pressure Transmitter

PT400R-2104-I2-DT043P

Order ID no. 100004484

In Stock

Base unit: PCE
EAN/UPC code: 4047101499971
Electrical output: Current output (2-wire)
Gross weight: 102
Height: 40
Length: 100
Net weight: 102
Dimension unit: MMT
Weight unit: GRM
Volume: 0.28
Volume unit: DMQ
Width: 70
Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Approvals: cULus
Electrical connection: Connector
Connector type: Deutsch DT04-3P
Design: Without display
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer: Stainless steel 1.4404 (AISI 316L)
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Media temperature max. (°C): 125
Media temperature min. (°C): -40
Pressure range: 0...400 bar
Operating voltage: DC
Output function: Analog output current
Pressure type: Relative pressure
Protection class: IP69K

Electrical output: Current output (2-wire)
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
