Pressure Transmitter

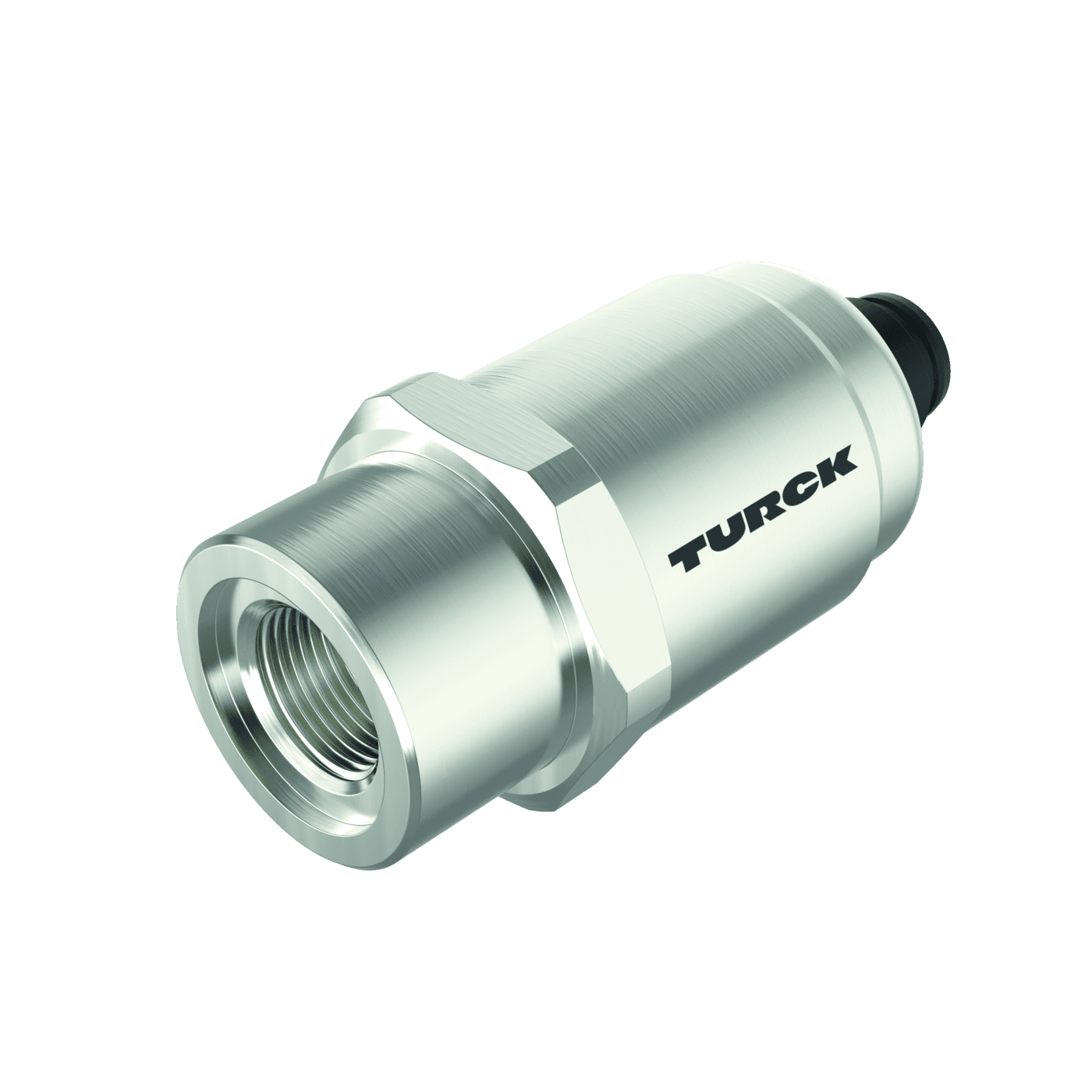

PT0.1VR-1501-I2-H1141/D840
Order ID no. 100004256
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101553864
Electrical output
Current output (2-wire)
Gross weight
105
Height
40
Length
100
Net weight
105
Dimension unit
MMT
Weight unit
GRM
Volume
0.28
Volume unit
DMQ
Width
70
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-25
Approvals
cULus
Electrical connection
Connector
Connector type
M12 x 1
Design
Without display
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer
Ceramic Al₂O₃
Process connection
G 1/4” female thread (front sealing)
Media temperature max. (°C)
85
Media temperature min. (°C)
-15
Pressure range
-0.1...0 bar
Operating voltage
DC
Pressure type
Relative pressure
Protection class
IP67
home
Turck-Shop
Sensors
Pressure Sensors
PT0.1VR-1501-I2-H1141/D840
Key Features
Electrical output
Current output (2-wire)
Process connection
G 1/4” female thread (front sealing)
