Home
Products

Pressure Transmitter

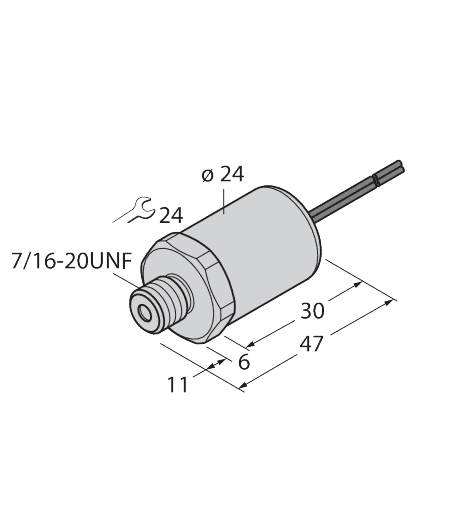

PT5000PSIG-2005-I2-WM0.5

Order ID no. 100000404

In Stock
Group	J1
List Price	SEK 1,566.00

Item TotalSEK 1,566.00

Quantity

Contact Support

homeHome
Loading...

Base unit: PCE
EAN/UPC code: 4047101438192
Electrical output: Current output (2-wire)
Gross weight: 118
Height: 40
Length: 120
Net weight: 118
Dimension unit: MMT
Weight unit: GRM
Volume: 480
Volume unit: CMQ
Width: 100
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Approvals: cULus
Electrical connection: Stranded wires
Connector type: Open end
Design: Without display
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer: Stainless steel 1.4435 (AISI 316L)
Process connection: 7/16″-20 UNF male thread
Media temperature max. (°C): 135
Media temperature min. (°C): -40
Pressure range: 0...344,74 bar
Operating voltage: DC
Output function: Analog output current
Pressure type: Relative pressure
Protection class: IP65

Key Features

Electrical output: Current output (2-wire)
Process connection: 7/16″-20 UNF male thread
