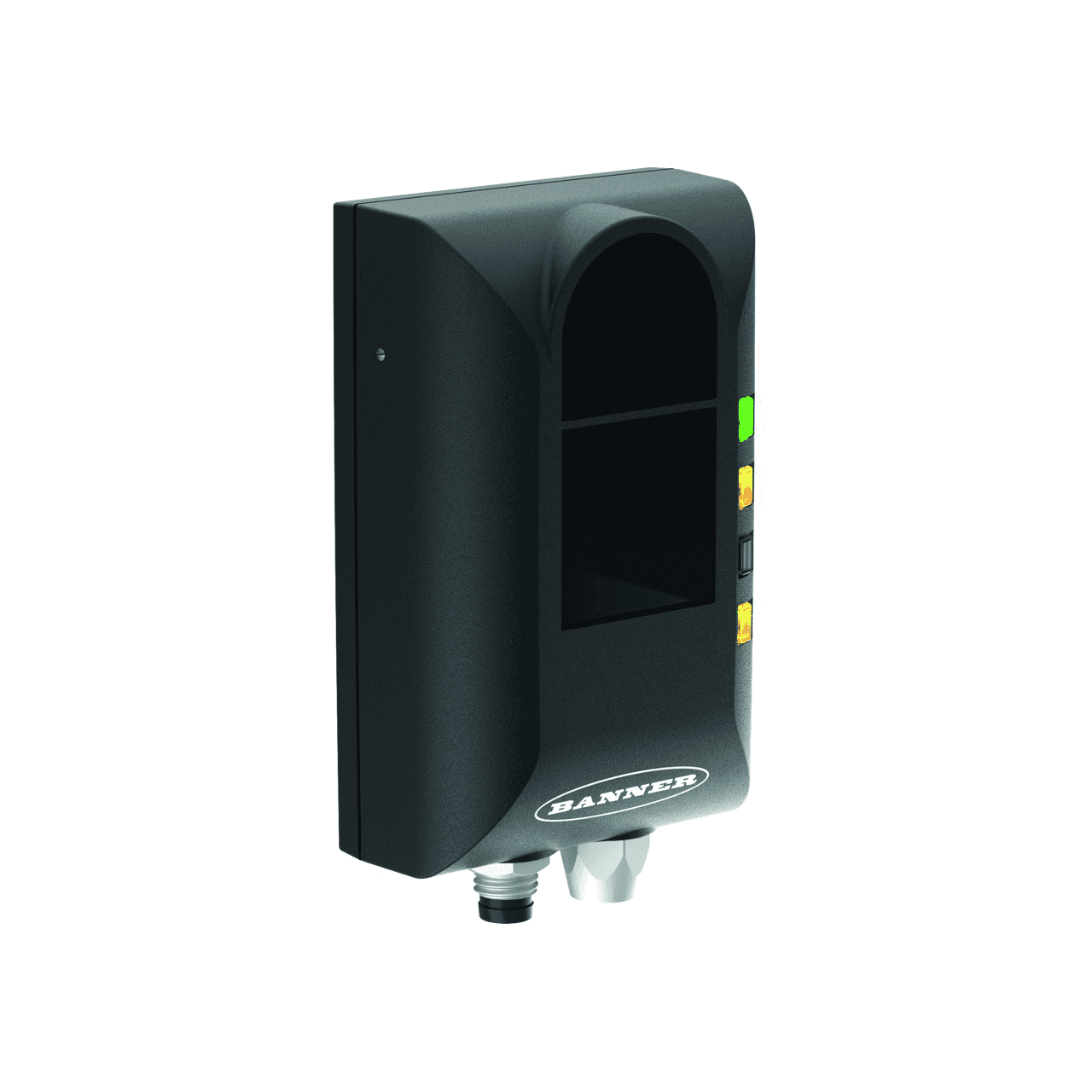

Photoelectric sensor 3D — Time of Flight
ZMX-3DE2500HF-Q7
Order ID no. 3813105
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
40
Ambient temperature min. (°C)
-10
Connector type
M12 x 1
Design
Rectangular

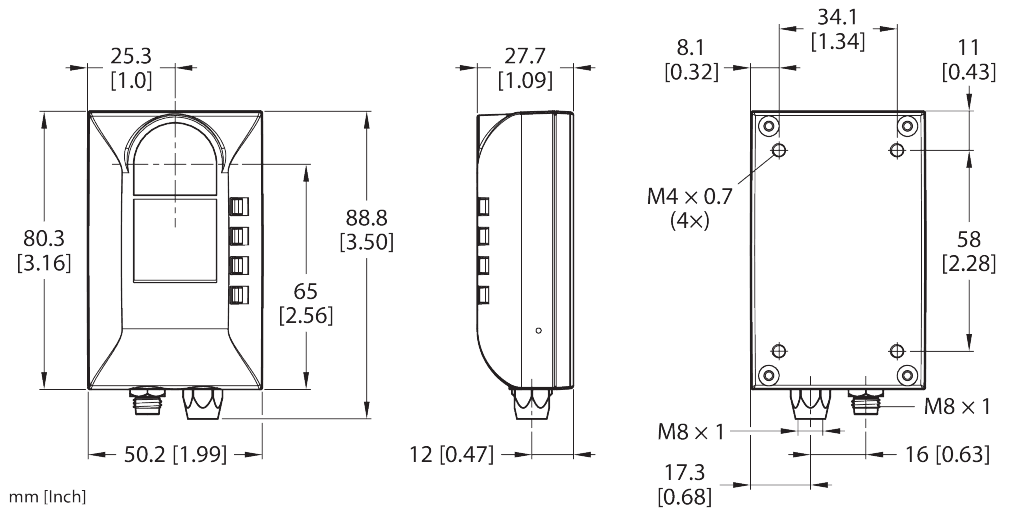

Dimensions
27,7 mm x 50,2 mm x 80,3 mm
Display
None
Electrical connection
Connector
Function
3D - Time of Flight
Housing material
Metal/plastic
Housing quality
AL, PC
Light type
IR
Max. range (mm)
2500
Operating mode
Time-of-Flight
Output function
Frequency, PNP/NPN
Protection class
IP65
Special features
Filling level detection
Switching element function
NO/NC
Wavelength (nm)
850
Key Features
Light type
IR
Function
3D - Time of Flight
Output function
PNP/NPN, Frequency
Max. range (mm)
2500
In Stock
List Price
20 063,00 kr
