Photoelectric Sensor
QCM50-K3D40-Q8-5
Order ID no. 3806617
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Approvals
CE, cULus
Communication protocol
IO-Link
Connector type
M12 x 1
Design
Rectangular

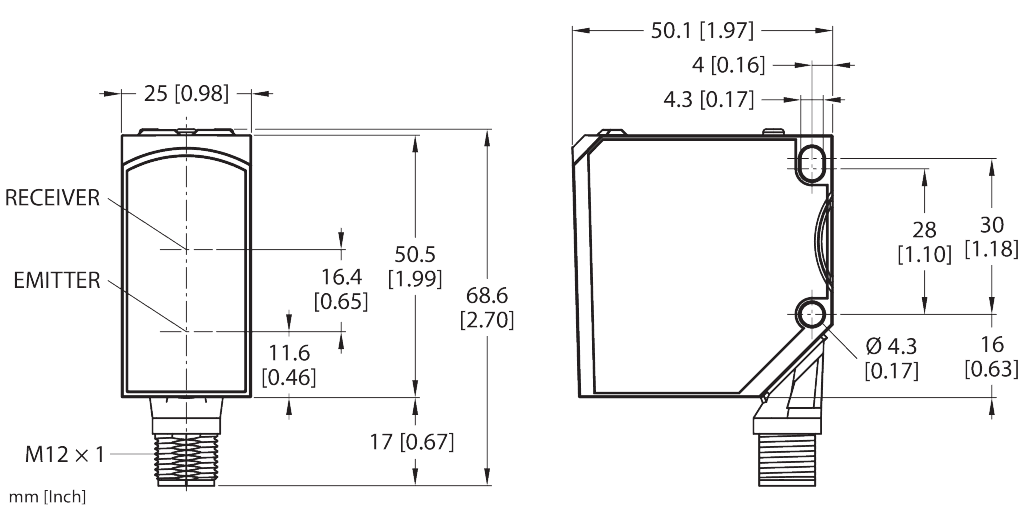

Dimensions
50 mm x 25 mm x 50,5 mm
Electrical connection
Connector
Function
Inspection sensor
Housing material
Die-cast zinc
Housing surface
Grey
Light type
White
Max. range (mm)
60
Operating mode
Color sensor
Output function
PNP/NPN
Protection class
IP67, IP69K
Setting option
IO-Link, Push Button
Switching element function
NO contact
Switching frequency (kHz)
1.5
Key Features
home
Turck-Shop
Sensors
Photoelectric Sensors
QCM50-K3D40-Q8-5
Light type
White
Function
Inspection sensor
Output function
PNP/NPN
Max. range (mm)
60
In Stock
Group
F3
List Price
13 283,00 kr
Item Total
13 283,00 kr
