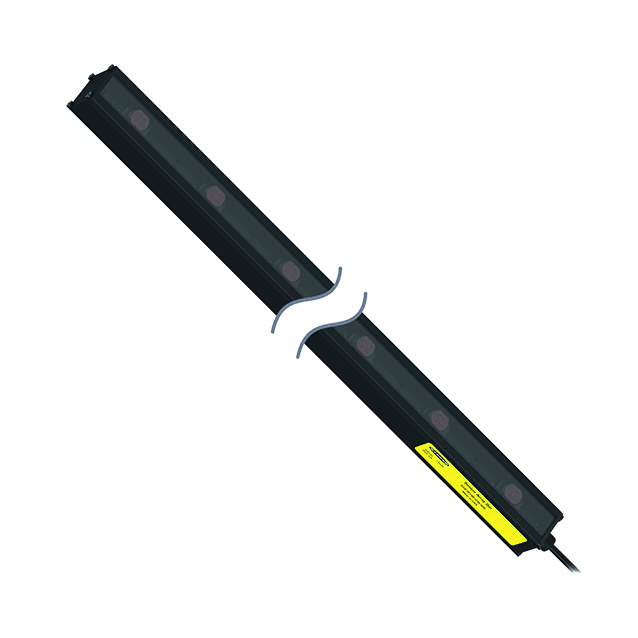

Photoelectric sensor Light Grid
SAB-497AB1DS6-Q5E
Order ID no. 3805075
In Stock
Group
F3
List Price
8 759,00 kr
Item Total
8 759,00 kr
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Cascadable
No
Connector type
M12 x 1
Design
Rectangular

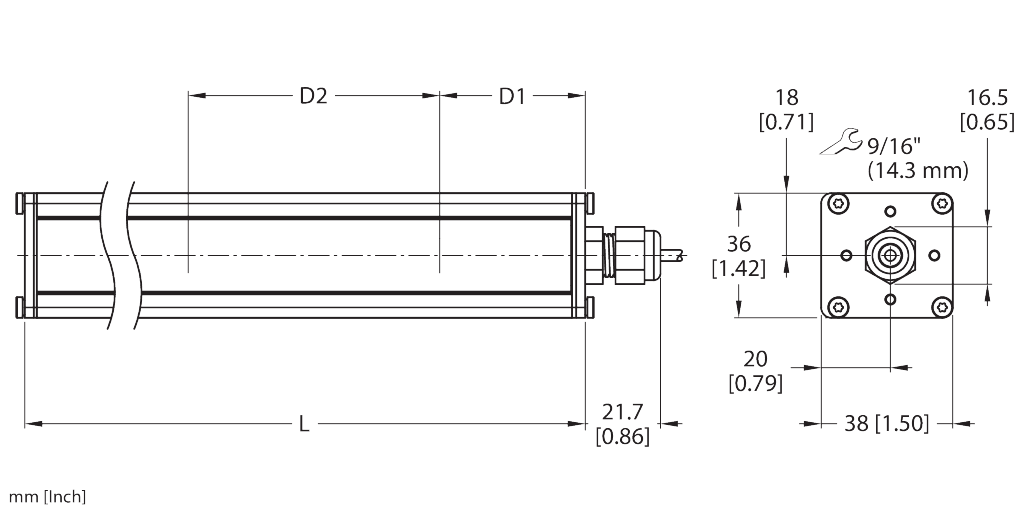

Dimensions
38 mm x 36 mm x 497 mm
Electrical connection
Cable with connector
Function
Proximity switch
Housing material
Metal
Housing quality
Anodized AL
Housing surface
Anodized
Light type
IR
Max. range (mm)
200
Number of beams
6
Operating mode
Diffuse
Optical resolution (mm)
82.6
Output function
PNP/NPN
Protection class
IP50
Scan field (mm)
497
Switching element function
NO contact
Wavelength (nm)
940
Key Features
Light type
IR
Function
Proximity switch
Output function
PNP/NPN
Max. range (mm)
200
