Photoelectric Sensor
SLM20P6Q
Order ID no. 3079213
In Stock
Group
F3
List Price
SEK 2,366.00
Item Total
SEK 2,366.00
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Photoelectric Sensors
SLM20P6Q
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488792138
Gross weight
182
Height
50
Length
120
Net weight
182
Dimension unit
MMT
Weight unit
GRM
Volume
480
Volume unit
CMQ
Width
80
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Electrical connection
Connector
Connector type
M8 x 1
Design
Fork

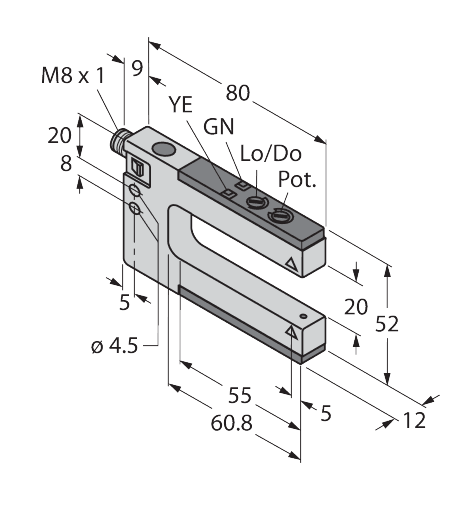

Dimensions
80 mm x 12 mm x 52 mm
Housing material
Metal
Housing quality
Zinc Die-Cast with Nickel-Plating
Light type
Red
Function
Slot sensor
Operating mode
Transmitter/receiver pair
Output function
PNP
Protection class
IP67
Max. range (mm)
20
Setting option
Potentiometer
Switching element function
NO contact
Wavelength (nm)
680
Key Features
Light type
Red
Function
Slot sensor
Output function
PNP
Max. range (mm)
20
