Photoelectric Sensor
SLM220B6
Order ID no. 3074989
In Stock
Group
F3
List Price
SEK 2,731.00
Item Total
SEK 2,731.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Photoelectric Sensors
SLM220B6
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488749897
Gross weight
737
Height
50
Length
330
Net weight
737
Dimension unit
MMT
Weight unit
GRM
Volume
3465
Volume unit
CMQ
Width
210
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Cable length (m)
2
Electrical connection
Cable
Design
Fork

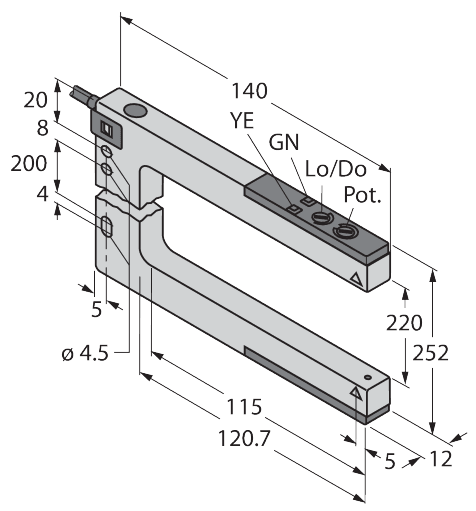

Dimensions
140 mm x 12 mm x 252 mm
Housing material
Metal
Housing quality
Zinc Die-Cast with Nickel-Plating
Light type
Red
Function
Slot sensor
Operating mode
Transmitter/receiver pair
Output function
PNP/NPN
Protection class
IP67
Max. range (mm)
220
Setting option
Potentiometer
Switching element function
NO contact
Wavelength (nm)
680
Key Features
Light type
Red
Function
Slot sensor
Output function
PNP/NPN
Max. range (mm)
220
