Photoelectric sensor convergent mode laser sensor
PD45VP6C100Q
Order ID no. 3046289
In Stock
Group
F3
List Price
8 551,00 kr
Item Total
8 551,00 kr
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Photoelectric Sensors
PD45VP6C100Q
Technical Data
Downloads
Ambient temperature max. (°C)
45
Ambient temperature min. (°C)
-10
Cable length (m)
0.15
Connector type
M12 x 1
Design
Rectangular

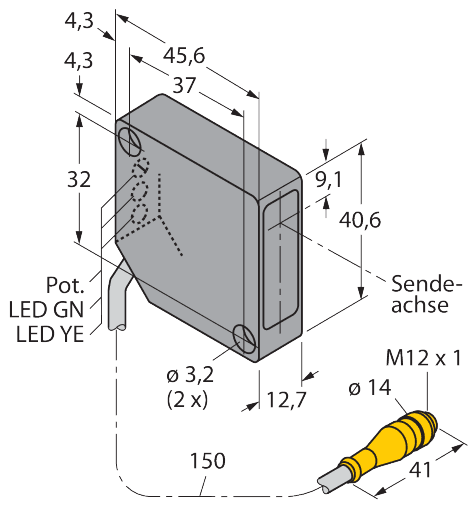

Dimensions
45,6 mm x 12,7 mm x 40,6 mm
Electrical connection
Cable with connector
Focal distance (mm)
102
Function
Proximity switch
Housing material
Plastic
Housing quality
Thermoplastic material
Laser class
2
Light type
Red
Max. range (mm)
102
Operating mode
Convergent
Output function
PNP
Protection class
IP54
Setting option
Potentiometer
Special features
Laser
Switching element function
Complementary contact
Switching frequency (kHz)
2.5
Wavelength (nm)
650
Key Features
Light type
Red
Function
Proximity switch
Output function
PNP
Max. range (mm)
102
