Q45BB6LLQ6 | TURCK - Your Global Automation Partner
Photoelectric Sensor
Q45BB6LLQ6
Order ID no. 3041032
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
40
Ambient temperature min. (°C)
-10
Connector type
M12 x 1
Construction size
⌀ 30 mm
Design
Rectangular

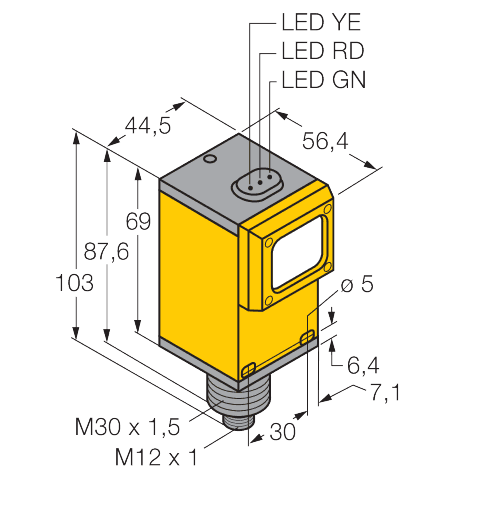

Dimensions
56,4 mm x 44,5 mm x 102,6 mm
Electrical connection
Connector
Function
Retroreflective Sensor
Housing material
Plastic
Housing quality
Thermoplastic material
Laser class
 2
Light type
Red
Max. range (mm)
70000
Operating mode
Unpolarized
Output function
PNP/NPN
Protection class
IP67
Setting option
Potentiometer
Special features
keep/defer
Switching element function
NO contact
Wavelength (nm)
655
Key Features
Light type
Red
Function
Retroreflective Sensor
Output function
PNP/NPN
Max. range (mm)
70000
In Stock
Group
F3
List Price
6 744,00 kr
