Q45BB6CVQ5 | TURCK - Your Global Automation Partner
Photoelectric Sensor
Q45BB6CVQ5
Order ID no. 3038661
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
Special features
keep/defer
EAN/UPC code
662488386610
Gross weight
263
Height
50
Length
130
Net weight
263
Dimension unit
MMT
Weight unit
GRM
Volume
585
Volume unit
CMQ
Width
90
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular
Construction size
⌀ 30 mm

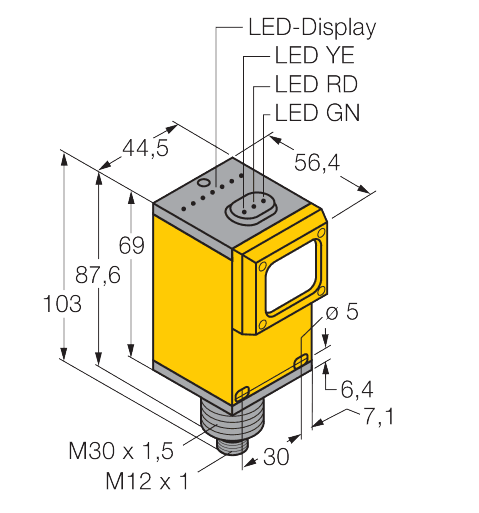

Dimensions
56,4 mm x 44,5 mm x 102,6 mm
Focal distance (mm)
38
Housing material
Plastic
Housing quality
Thermoplastic material
Light type
Red
Function
Proximity switch
Operating mode
Convergent
Output function
PNP/NPN
Protection class
IP67
Max. range (mm)
38
Setting option
Potentiometer
Switching element function
NO contact
Wavelength (nm)
680
Key Features
Light type
Red
Function
Proximity switch
Output function
PNP/NPN
Max. range (mm)
38
