WIM45-UNTL-LIU5X2-0.3-PSG4M | TURCK - Your Global Automation Partner
Linear Position Sensor
WIM45-UNTL-LIU5X2-0.3-PSG4M
Order ID no. 1536620
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Cable length (m)
0.3
Connector type
M8 x 1
Cylindrical design
T-groove cylinder

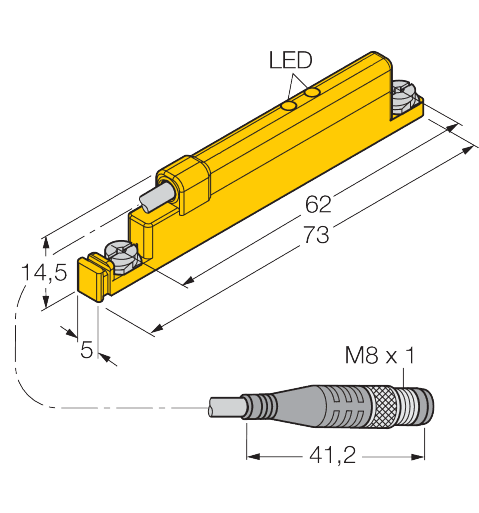

Dimensions
73 mm x 5 mm x 14,5 mm
Electrical connection
Cable with connector
Housing material
Plastic
Housing quality
PA12-GF30
Measuring principle
Magnetic
Measuring range (mm)
45
Operating voltage
DC
Output function
Analog output
Protection class
IP67
Key Features
Electrical connection
Cable with connector
Cylindrical design
T-groove cylinder
Output function
Analog output
In Stock
Group
E1
List Price
3 386,00 kr
Item Total
3 386,00 kr
Quantity
−
+
