LI200P1-Q17LM1-LIU5X2-0.3-RS5/3GD | TURCK - Your Global Automation Partner

LI200P1-Q17LM1-LIU5X2-0.3-RS5/3GD

LI200P1-Q17LM1-LIU5X2-0.3-RS5/3GD

Thumbnail for LI200P1-Q17LM1-LIU5X2-0.3-RS5/3GD

Thumbnail for LI200P1-Q17LM1-LIU5X2-0.3-RS5/3GD

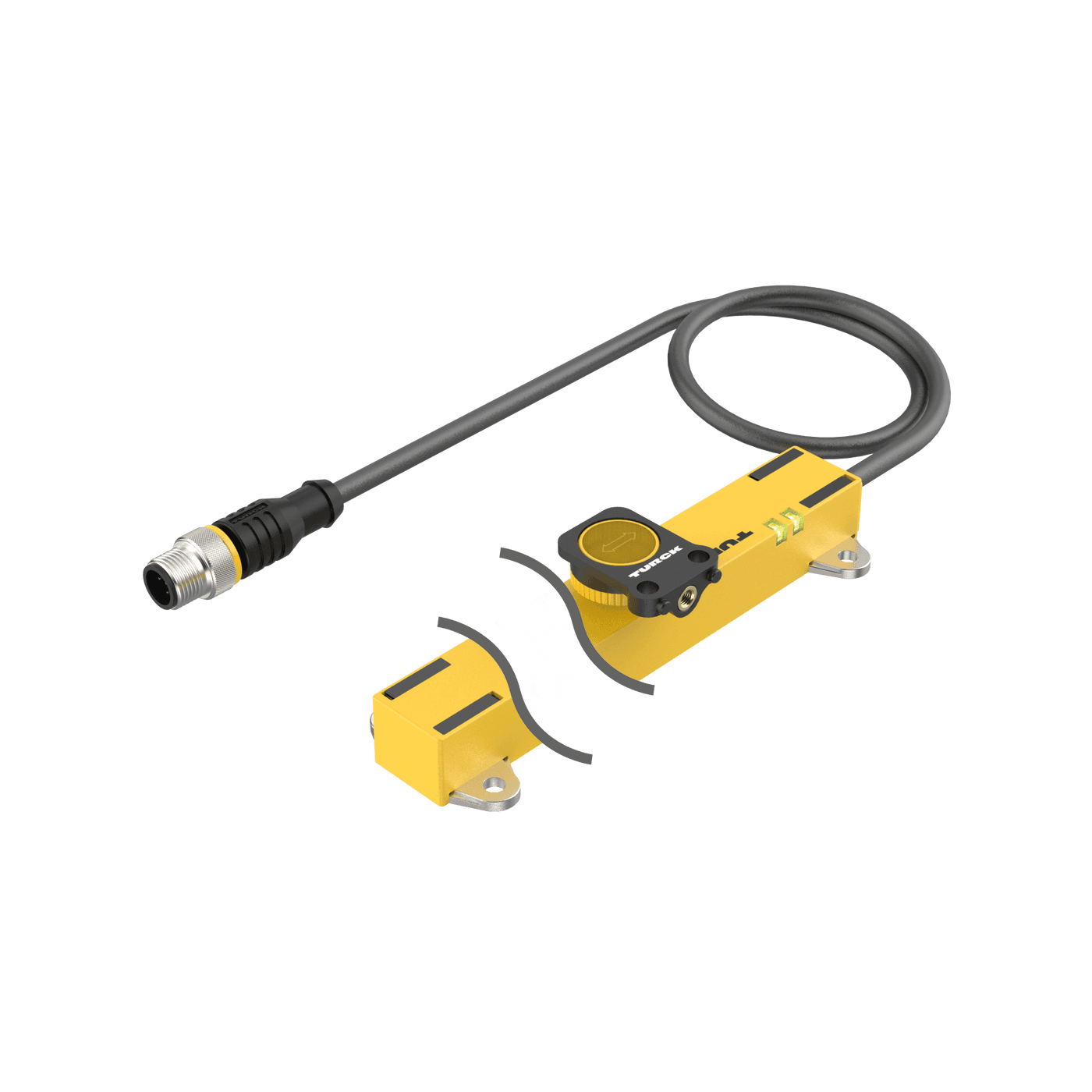

Inductive Linear Position Sensor

LI200P1-Q17LM1-LIU5X2-0.3-RS5/3GD

Order ID no. 100004404

homeHome
Loading...

Base unit: PCE
EAN/UPC code: 4047101498929
Gross weight: 176
Height: 15
Length: 230
Net weight: 176
Dimension unit: MMT
Weight unit: GRM
Volume: 51.75
Volume unit: CMQ
Width: 15
Ambient temperature max. (°C): 50
Ambient temperature min. (°C): -25
Cable color: Black
Cable length (m): 0.3
Electrical connection: Cable with connector
Connector type: M12 x 1
Design: Profile

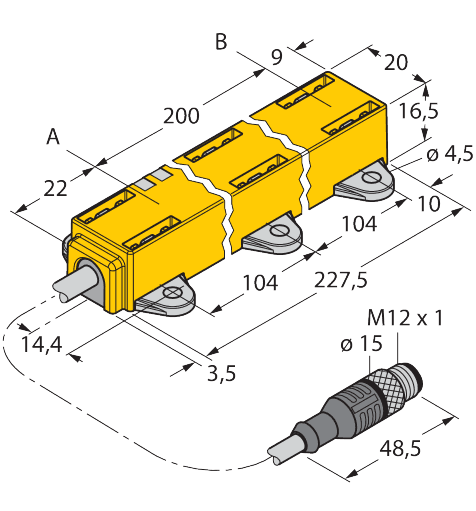

Dimensions: 231 mm x 20 mm x 16,5 mm
Housing material: Plastic
Housing quality: PC-GF10
Measuring range (mm): 200
Operating voltage: DC
Output function: Analog output
Measuring principle: Inductive
Protection class: IP67
Resolution: 0.049 mm

Key Features

Electrical connection: Cable with connector
Measuring range (mm)

200

Output function

Analog output

In Stock
Group	F1
List Price	SEK 3,752.00
