Inductive Sensor
NI4U-Q8SE-AN6X
Order ID no. 4635809
In Stock
Group
E2
List Price
SEK 1,014.00
Item Total
SEK 1,014.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Inductive Sensors
NI4U-Q8SE-AN6X
Technical Data
Downloads
Special features
uprox+, Factor 1, Resistant to magnetic fields
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Cable color
Gray
Cable length (m)
2
Electrical connection
Cable
Design
Rectangular

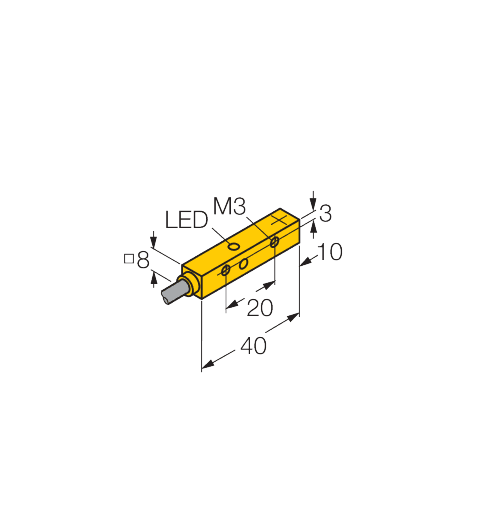

Dimensions
40 mm x 8 mm x 8 mm
Housing material
Plastic
Housing quality
PP
Housing surface
Yellow
Mounting conditions
Non-flush
Operating voltage
DC
Output function
NPN
Protection class
IP68
Quality active face
PP
Rated switching distance (mm)
4
Switching element function
NO contact
Switching frequency (kHz)
1
Key Features
Electrical connection
Cable
Mounting conditions
Non-flush
Output function
NPN
Rated switching distance (mm)
4
