Inductive Sensor

BI2U-EGT08-AP6X-V1131

Order ID no. 4602070

Special features: uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Electrical connection: Connector

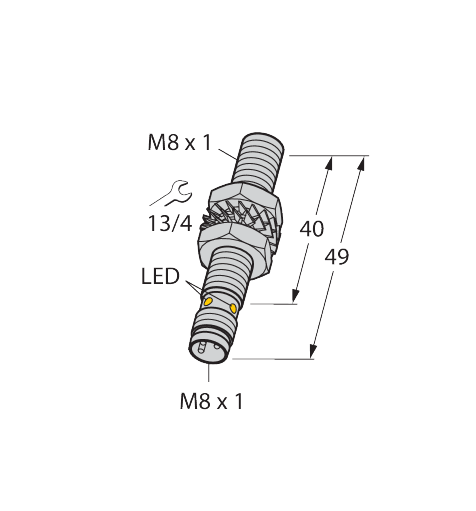

Connector type: M8 x 1
Design: Threaded barrel
Construction size: ⌀ 8 mm
Housing material: Stainless steel
Housing quality: 1.4427 SO
Housing surface: PTFE-coated
Mounting conditions: Flush
Operating voltage: DC
Output function: PNP
Protection class: IP68
Quality active face: PP
Rated switching distance (mm): 2
Switching element function: NO contact
Switching frequency (kHz): 1
