Home
Products

NI35U-CK40-ADZ30X2-B1131

NI35U-CK40-ADZ30X2-B1131

Thumbnail for NI35U-CK40-ADZ30X2-B1131

Thumbnail for NI35U-CK40-ADZ30X2-B1131

Inductive Sensor

NI35U-CK40-ADZ30X2-B1131

Order ID no. 4280410

In Stock
Group	E1
List Price	SEK 1,414.00

Item TotalSEK 1,414.00

Quantity

Contact Support

homeHome
Loading...

Special features: uprox+, Sn +, Factor 1
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Electrical connection: Connector
Connector type: 7/8″
Design: Rectangular

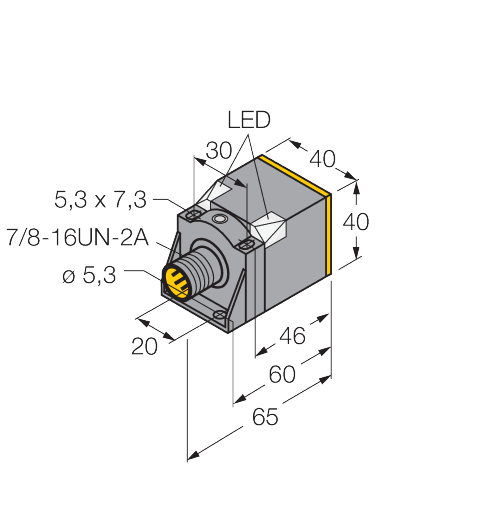

Dimensions: 65 mm x 40 mm x 40 mm
Housing material: Plastic
Housing quality: PBT-GF20-V0
Housing surface: Black
Mounting conditions: Non-flush
Operating voltage: AC/DC
Output function: 2-wire
Protection class: IP68
Quality active face: PA6-GF30-X
Rated switching distance (mm): 35
Switching element function: NO contact
Switching frequency (kHz): 0.01

Key Features

Electrical connection: Connector
Mounting conditions: Non-flush
Output function: 2-wire
Rated switching distance (mm): 35
