Inductive Sensor
BI10-Q14-ADZ32X2/S34
Order ID no. 4256225
In Stock
Group
E1
List Price
SEK 1,258.00
Item Total
SEK 1,258.00
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Inductive Sensors
BI10-Q14-ADZ32X2/S34
Technical Data
Downloads
Special features
Resistant to magnetic fields
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Cable color
Gray
Cable length (m)
2
Electrical connection
Cable
Design
Rectangular

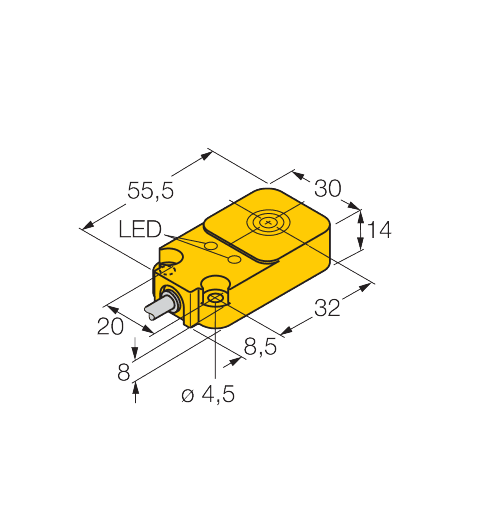

Dimensions
52 mm x 30 mm x 14 mm
Housing material
Plastic
Housing quality
PBT-GF30-V0
Mounting conditions
Flush
Operating voltage
AC/DC
Output function
2-wire
Protection class
IP67
Quality active face
PBT-GF30-V0
Rated switching distance (mm)
10
Switching element function
NO contact
Switching frequency (kHz)
0.02
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
2-wire
Rated switching distance (mm)
10
