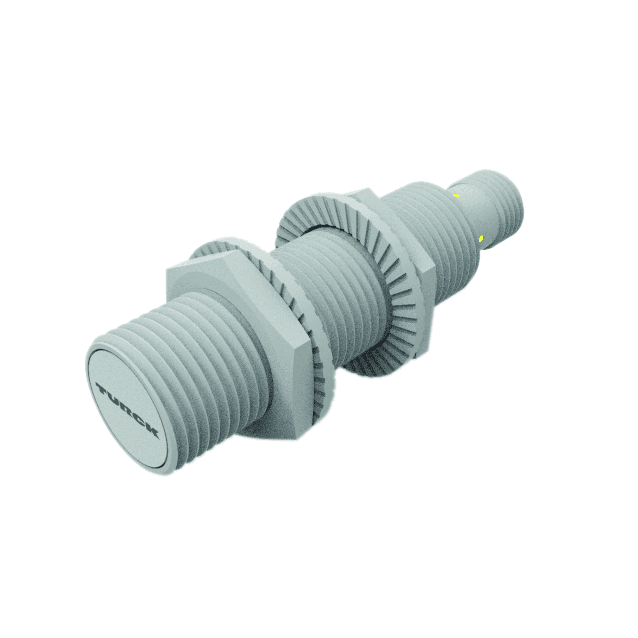

Inductive Sensor

BI8U-MT18E-AP6X-H1141

Order ID no. 1644752

Item TotalSEK 1,172.00

Quantity

Special features: uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Electrical connection: Connector
Connector type: M12 x 1
Design: Threaded barrel
Construction size: ⌀ 18 mm
Housing material: Metal
Housing quality: CuZn
Housing surface: PTFE-coated
Mounting conditions: Flush
Operating voltage: DC
Output function: PNP
Protection class: IP68
Quality active face: LCP
Rated switching distance (mm): 8
Switching element function: NO contact
Switching frequency (kHz): 1.5
