Inductive Sensor Ring sensor
BI30R-Q20-AN6X2-H1141
Order ID no. 1407520
In Stock
Group
E1
List Price
1 812,00 kr
Item Total
1 812,00 kr
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Inductive Sensors
BI30R-Q20-AN6X2-H1141
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Connector type
M12 x 1
Design
Ring sensor

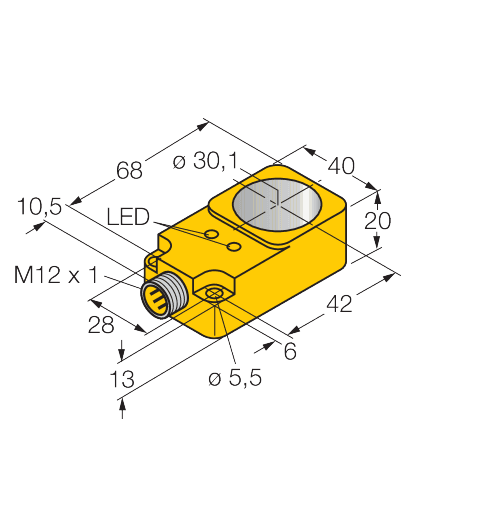

Dimensions
68 mm x 40 mm x 20 mm
Electrical connection
Connector
Housing material
Plastic
Housing quality
PBT-GF30-V0
Inside ring diameter D (mm)
30.1
Operating voltage
DC
Output function
NPN
Protection class
IP65
Special features
Ring sensor, static output
Switching element function
NO contact
Switching frequency (kHz)
0.008
Key Features
Electrical connection
Connector
Output function
NPN
