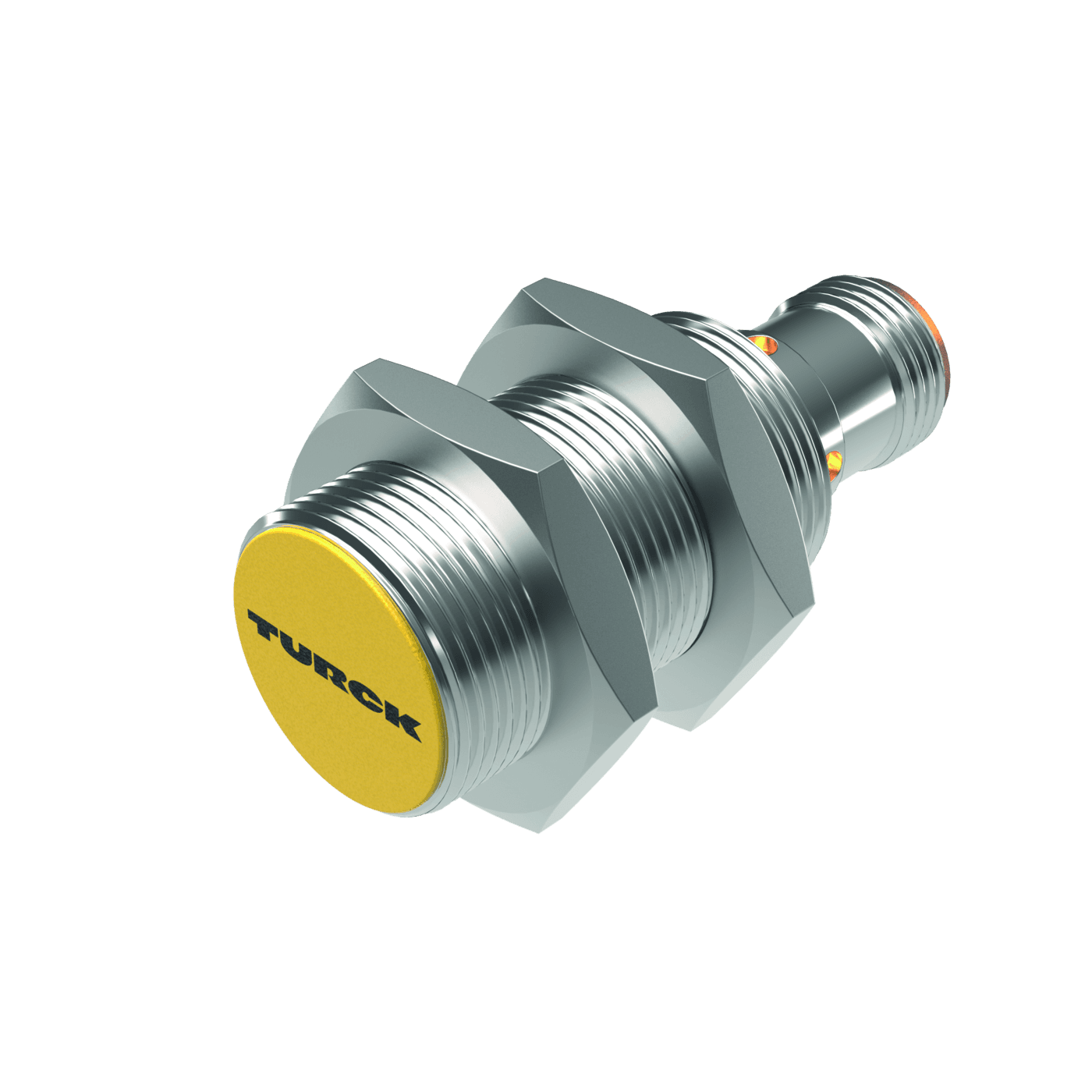

Inductive Sensor
BI7-M18-AD6X-H1141
Order ID no. 100018010
In Stock
Group
E1
List Price
SEK 480.00
Item Total
SEK 480.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
2-wire
Design
Threaded barrel
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
7
Construction size
M18 x 1
Base unit
PCE
EAN/UPC code
4047101523010
Gross weight
50
Height
15
Length
190
Net weight
50
Dimension unit
MMT
Weight unit
GRM
Volume
370.5
Volume unit
CMQ
Width
130
Dimensions
18 mm x 52 mm
Housing surface
Chrome-plated
Quality active face
PA12-GF30
Switching frequency (kHz)
1
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
2-wire
Rated switching distance (mm)
7
