BI7-M18-AD6X | TURCK - Your Global Automation Partner
Inductive Sensor

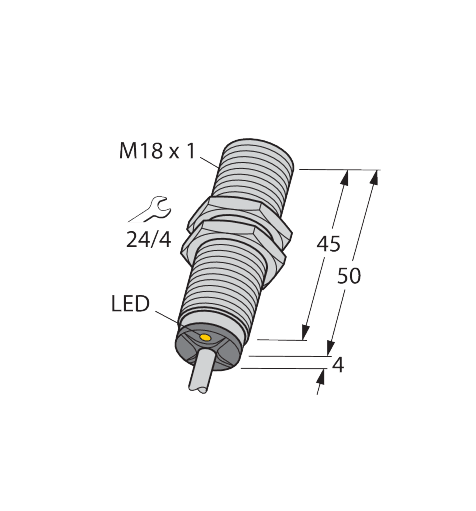

BI7-M18-AD6X
Order ID no. 100018009
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
2-wire
Cable length (m)
2
Design
Threaded barrel
Electrical connection
Cable
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
7
Construction size
M18 x 1
Base unit
PCE
EAN/UPC code
4047101523003
Gross weight
119
Height
35
Length
200
Net weight
119
Dimension unit
MMT
Weight unit
GRM
Volume
1.33
Volume unit
DMQ
Width
190
Dimensions
18 mm x 54 mm
Housing surface
Chrome-plated
Quality active face
PA12-GF30
Switching frequency (kHz)
1
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
2-wire
Rated switching distance (mm)
7
In Stock
Group
E1
List Price
SEK 510.00
