Capacitive Sensor
BCT10-S30-UP6X2-H1151
Order ID no. 2101700
In Stock
home
Turck-Shop
Sensors
Capacitive Sensors
BCT10-S30-UP6X2-H1151
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
UL
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 x 1
Design
Threaded barrel
Construction size
⌀ 30 mm

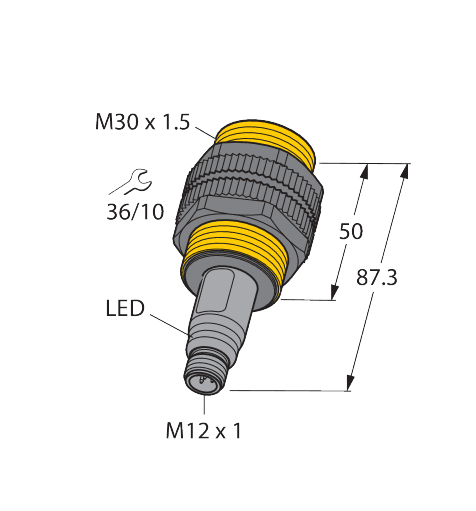

Dimensions
87,3 mm
Housing material
Plastic
Housing quality
PA12-GF30, PEI
Mounting conditions
Flush
Operating voltage
DC
Output function
PNP
Measuring principle
Capacitive
Protection class
IP67, IP69K
Quality active face
PA12-GF30
Rated switching distance (mm)
15
Switching element function
NO/NC
Switching frequency (kHz)
0.01
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
15
Group
E1
List Price
SEK 1,643.00
Item Total
SEK 1,643.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
