Capacitive Sensor
BCE10-QF5.5-AN6X2
Order ID no. 100029093
In Stock
Group
E1
List Price
622,00 kr
Item Total
622,00 kr
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Capacitive Sensors
BCE10-QF5.5-AN6X2
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-10
Approvals
UL
Electrical connection
Cable
Design
Rectangular

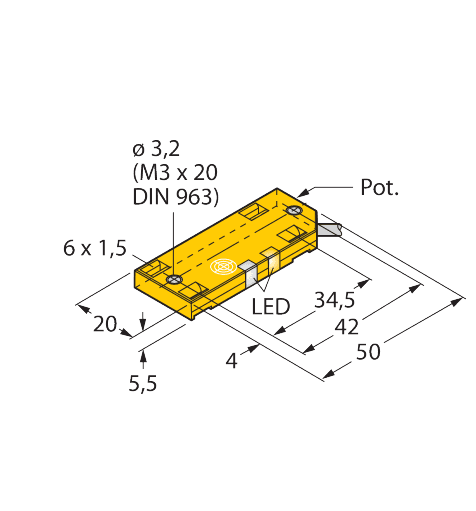

Dimensions
54 mm
Housing material
Plastic
Housing quality
PP
Mounting conditions
Flush
Operating voltage
DC
Output function
NPN
Measuring principle
Capacitive
Protection class
IP65
Quality active face
PP
Rated switching distance (mm)
10
Switching element function
NO contact
Switching frequency (kHz)
0.05
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
10
