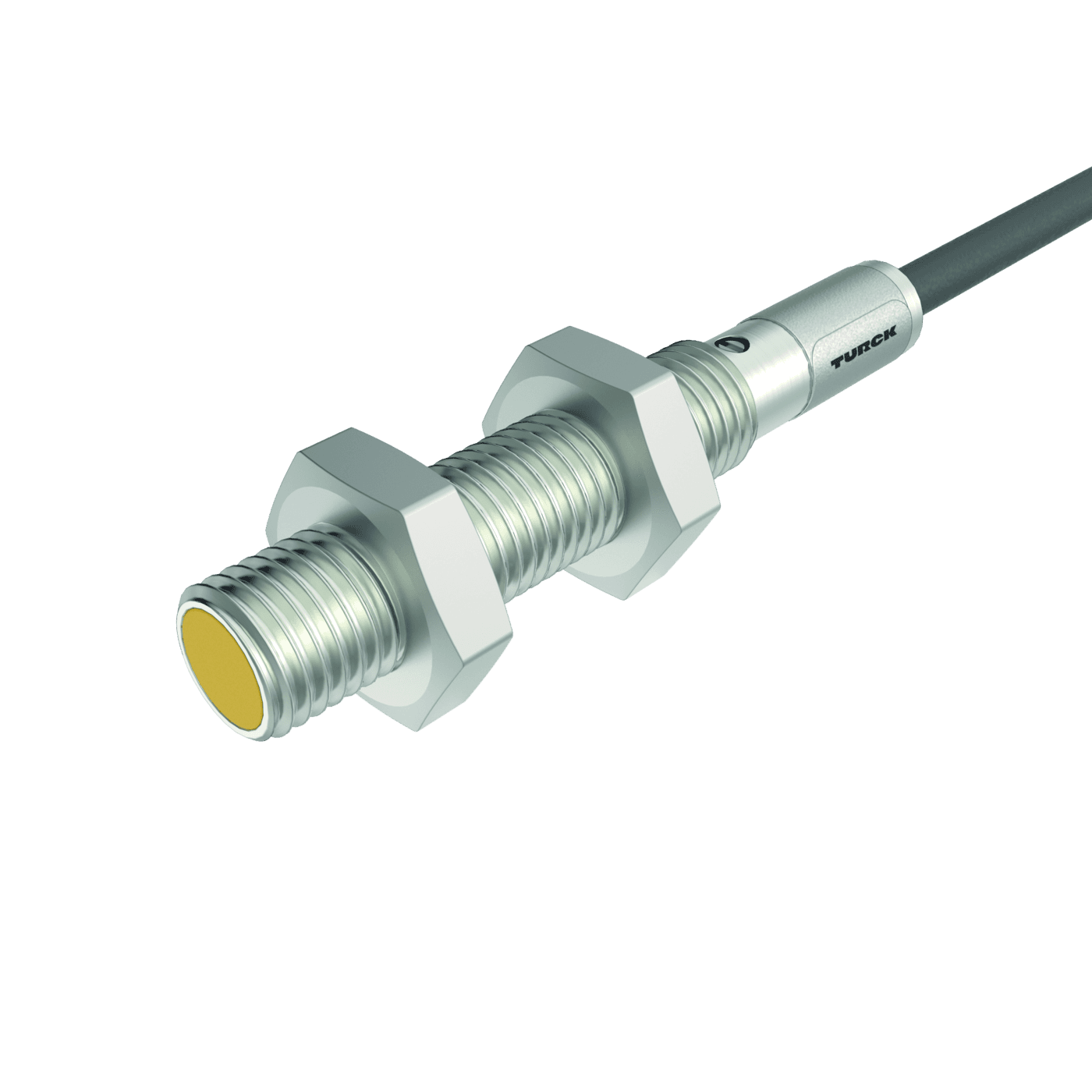

Capacitive Sensor
BC2-EM08-UN8X
Order ID no. 100021822
In Stock
Group
E1
List Price
1 929,00 kr
Item Total
1 929,00 kr
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Cable length (m)
2
Construction size
⌀ 8 mm
Design
Threaded barrel
Detection type
medium contact
Dimensions
51,5 mm
Electrical connection
Cable
Function
Level detection
Housing material
Stainless steel
Measuring principle
Capacitive
Media temperature max. (°C)
70
Media temperature min. (°C)
-25
Medium
Bulk goods, liquids
Mounting conditions
Flush
Operating voltage
DC
Output function
NPN
Protection class
IP67
Quality active face
PBT
Rated switching distance (mm)
2
Switching element function
NO/NC (NO pre-set)
Switching frequency (kHz)
0.1
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
2
