Flow Rate Monitoring

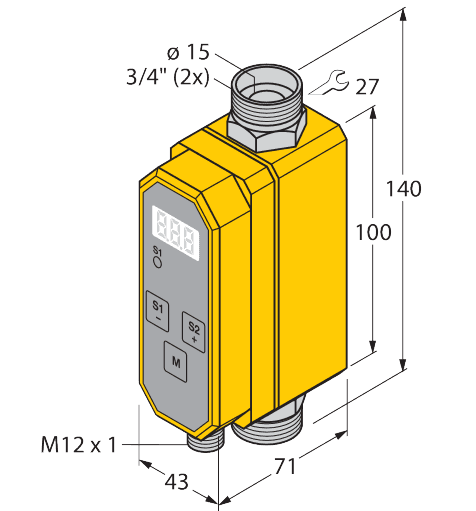

FTCI-3/4D15A4P-2UP8X-H1141
Order ID no. 6870808
In Stock
Group
D2
List Price
7 464,00 kr
Item Total
7 464,00 kr
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Others
FTCI-3/4D15A4P-2UP8X-H1141
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
0
Application area
Standard
Connector type
M12 x 1
Design
Inline
Detection type
Calorimetric
Electrical connection
Connector
Function
Flow rate measurement
Housing material
Plastic
Housing quality
PBT
Media temperature max. (°C)
90
Media temperature min. (°C)
-10
Medium
liquids
Mounting conditions
Inline sensor
Operating voltage
DC
Output function
2 x PNP
Process connection
3/4″ Swagelok
Protection class
IP65
Switching element function
NO/NC programmable
