Inductive Sensor
BI15-CP40-VDZ3X2/S10
Order ID no. 42227
In Stock
Group
E1
List Price
SEK 4,169.00
Item Total
SEK 4,169.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
BI15-CP40-VDZ3X2/S10
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Electrical connection
Terminal chamber
Design
Rectangular

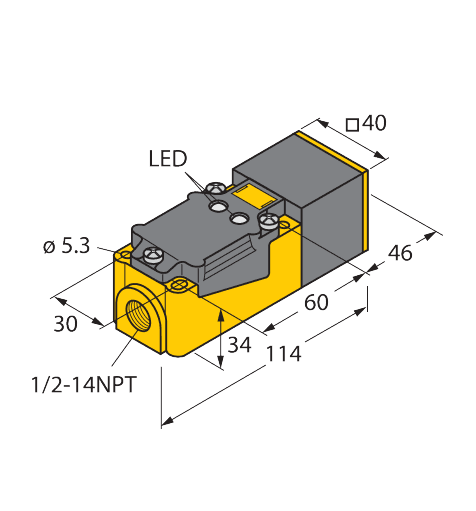

Dimensions
114 mm x 40 mm x 40 mm
Housing material
Plastic
Housing quality
PBT-GF30-V0
Housing surface
Black
Mounting conditions
Flush
Operating voltage
AC/DC
Output function
2-wire
Protection class
IP67
Quality active face
PBT-GF30-V0
Rated switching distance (mm)
15
Switching element function
NO/NC
Switching frequency (kHz)
0.01
