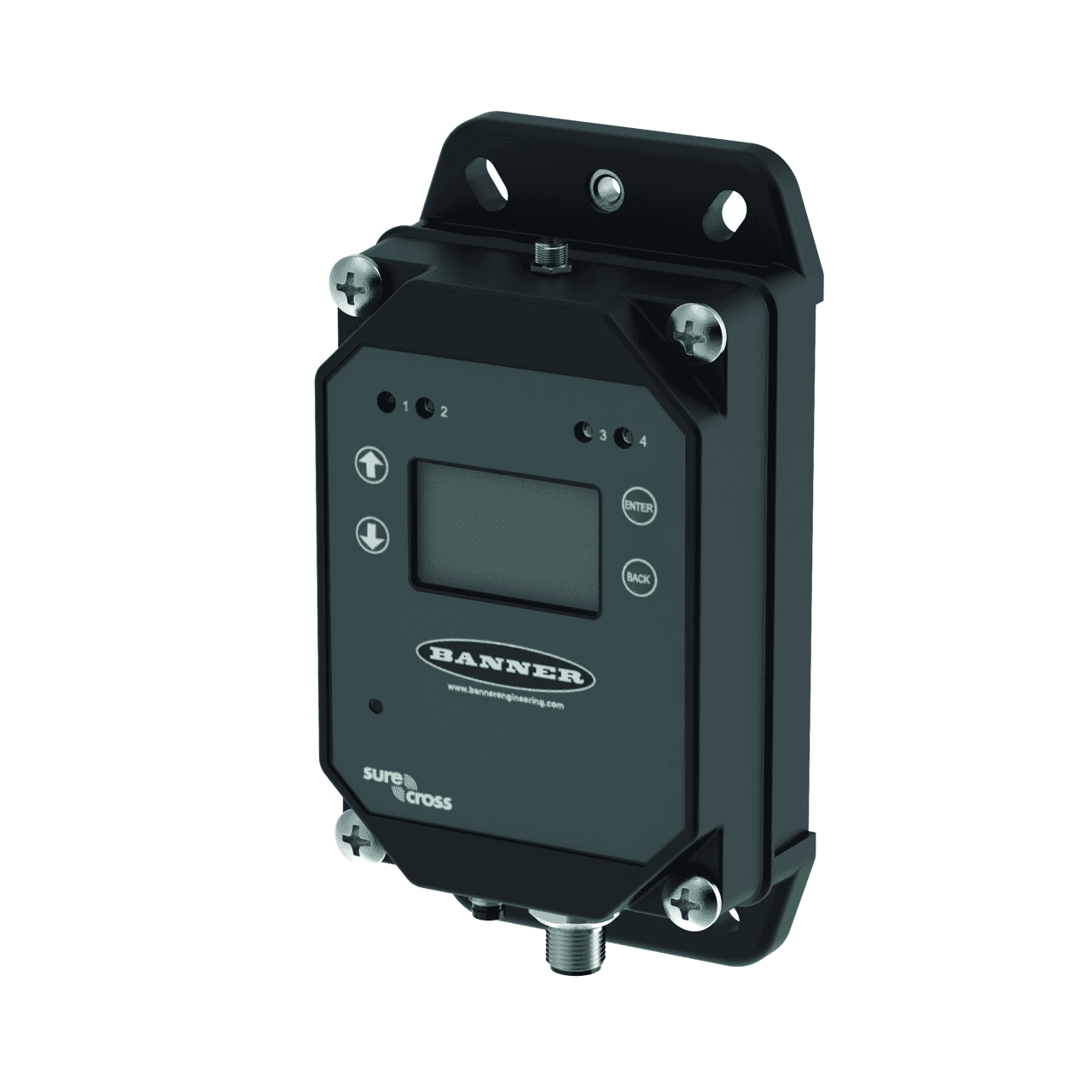

Network Controller

DXM1200-X2R3

Order ID no. 3814990

Item TotalSEK 9,359.00

Quantity

Ambient temperature max. (°C): 60
Ambient temperature min. (°C): -20
Antenna connection: RP-SMA female connector
Runs with battery: No
Communication protocol: RS485, Modbus RTU, EtherNet/IP, Modbus TCP, PROFINET
Electrical connection: Connector
Connector type: M12 x 1
Design: Rectangular

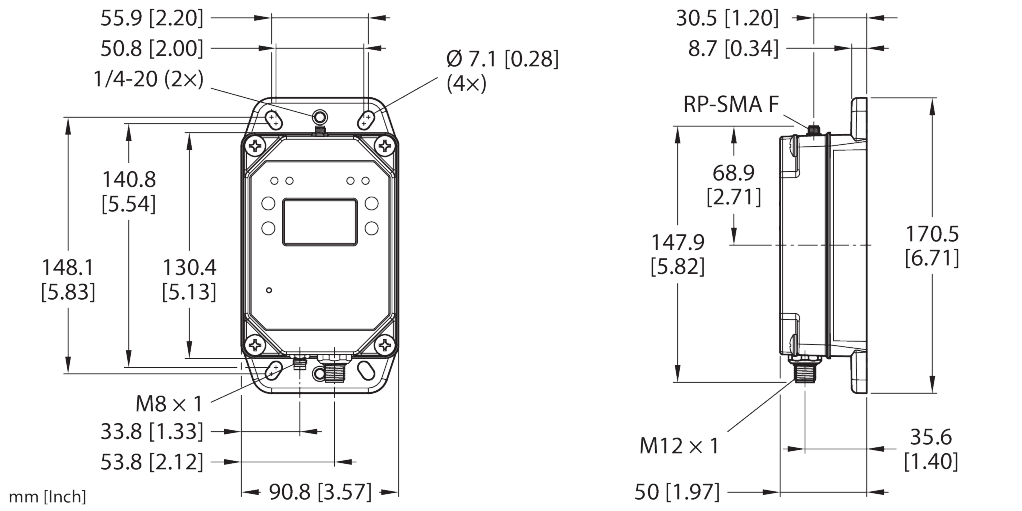

Dimensions: 50,9 mm x 90,8 mm x 170,5 mm
Frequency band: 2.4-GHz ISM band
Frequency range: 2.402 - 2.483 GHz
Housing material: Plastic
Housing quality: PC
Housing surface: Black
Function: Star topology
Operating voltage: DC
Output function: PNP/NPN, analog output
Protection class: IP67
Max. range (mm): 3200000
Switching element function: Programmable
