PVA375P6EQ W/6IN | TURCK - Your Global Automation Partner
Pick-to-Light
PVA375P6EQ W/6IN
Order ID no. 3071527
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488715274
Gross weight
358
Height
30
Length
430
Net weight
358
Dimension unit
MMT
Weight unit
GRM
Volume
1.161
Volume unit
DMQ
Width
90
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
0
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
M12 x 1
Design
Rectangular
Scan field (mm)
375

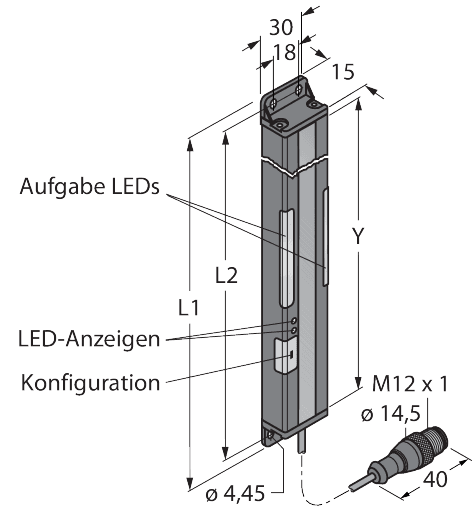

Dimensions
416,6 mm x 30 mm x 15 mm
Housing material
Metal
Housing quality
AL
Housing surface
Black
Input type
Bipolar (PNP/NPN)22
Light type
IR
Number of beams
16
Number of colors/segments
1
Function
Opposed mode sensor
Operating mode
Emitter
Operating voltage
DC
Optical resolution (mm)
25
Protection class
IP62
Max. range (mm)
2000
Wavelength (nm)
880
In Stock
Group
F3
List Price
SEK 7,342.00
Item Total
SEK 7,342.00
