R55CW1Q | TURCK - Your Global Automation Partner
Consumption only
R55CW1Q
Order ID no. 3052285
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488522858
Gross weight
376.48
Height
50
Length
130
Net weight
376.48
Dimension unit
MMT
Weight unit
GRM
Volume
585
Volume unit
CMQ
Width
90
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-10
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular

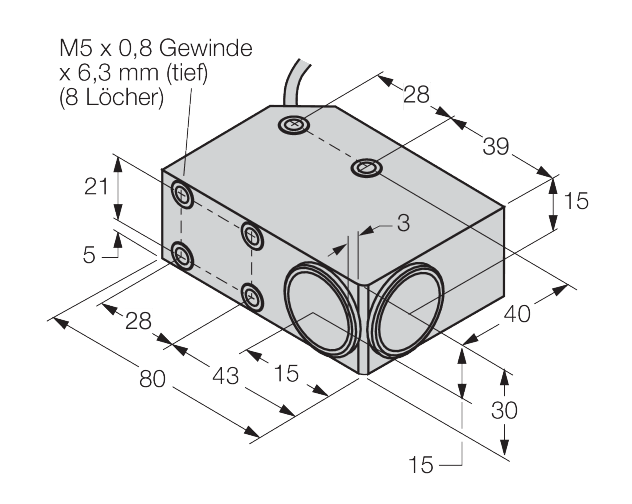

Dimensions
80 mm x 30 mm x 56 mm
Display
10-segment
Housing material
Metal
Housing quality
Zinc Alloy Die-Cast
Light type
White
Function
Contrast sensor
Output function
Analog output
Protection class
IP67
Max. range (mm)
10
Setting option
Potentiometer
Switching element function
NO contact
Switching frequency (kHz)
10
In Stock
Group
F3
List Price
SEK 7,342.00
Item Total
SEK 7,342.00
Quantity
−
+
