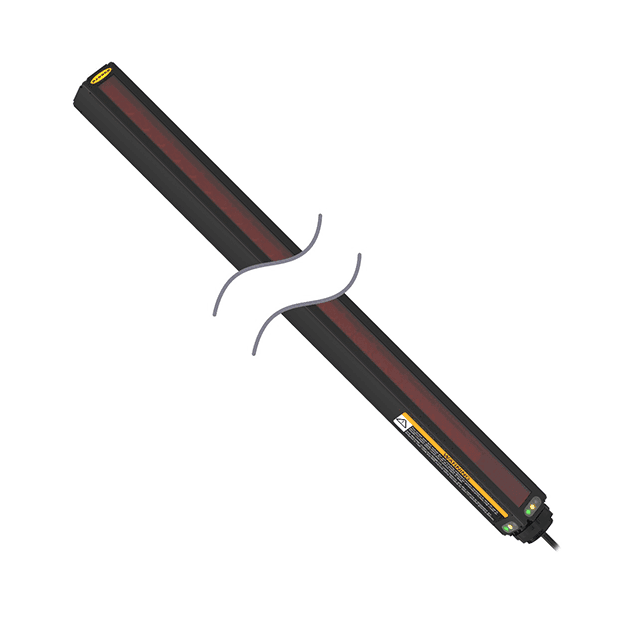

Measuring Light Screen
BMRL7216A
Order ID no. 3038552
In Stock
Group
F3
List Price
SEK 24,862.00
home
Turck-Shop
Others
BMRL7216A
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488385521
Gross weight
3292
Height
50
Length
2280
Net weight
3292
Dimension unit
MMT
Weight unit
GRM
Volume
5700
Volume unit
CMQ
Width
50
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Approvals
CE, cULus recognized
Electrical connection
Connector
Connector type
7/8″
Design
Rectangular
Scan field (mm)
1810

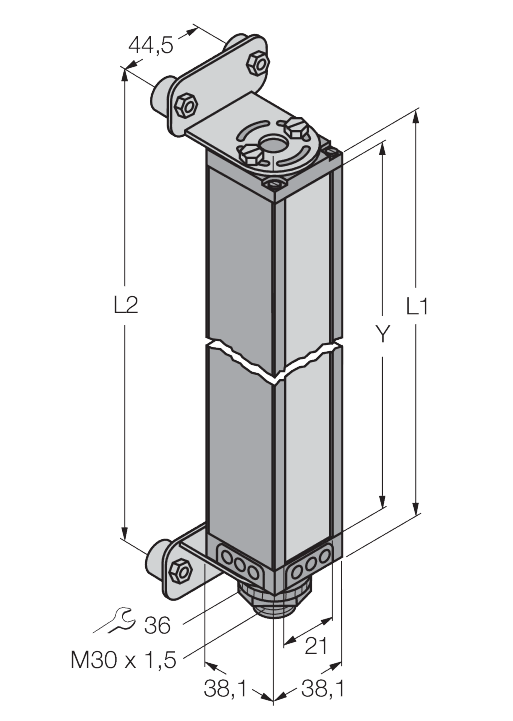

Dimensions
38,1 mm x 38,1 mm x 1877 mm
Housing material
Metal
Housing quality
AL
Number of beams
96
Function
Opposed mode sensor (receiver)
Operating mode
Receiver
Optical resolution (mm)
19
Protection class
IP65
Max. range (mm)
14000
