Capacitive sensor

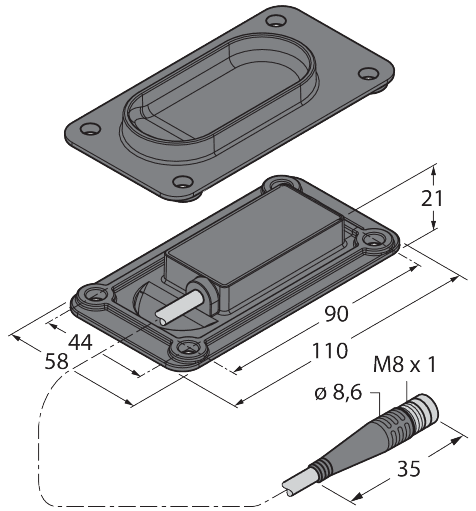

BCF3.5-DIV-AP6-2.35-PSG4.31S

Order ID no. 2621217

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: UL
Cable length (m): 2.35
Connector type: M8
Design: Rectangular
Electrical connection: Connector
Function: For highly viscous media
Housing material: Plastic
Housing quality: PBT-GF30-V0
Measuring principle: Capacitive
Mounting conditions: Flush
Operating voltage: DC
Output function: PNP
Protection class: IP67
Quality active face: PBT-GF30-V0
Rated switching distance (mm): 3.5
Special features: Improved background suppression, Increased EMC protection, Suited for highly viscous media
Switching element function: normally open NO
Switching frequency (kHz): 0.1
