Inductive Sensor

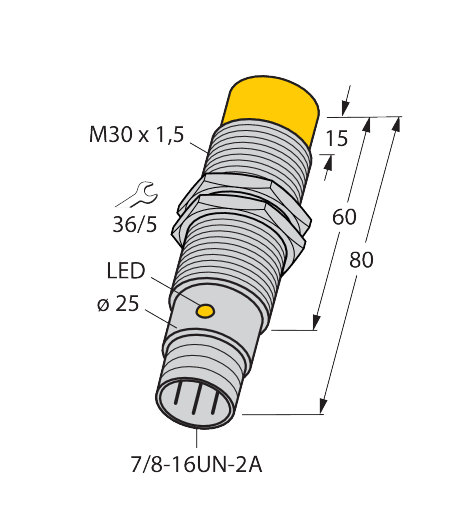

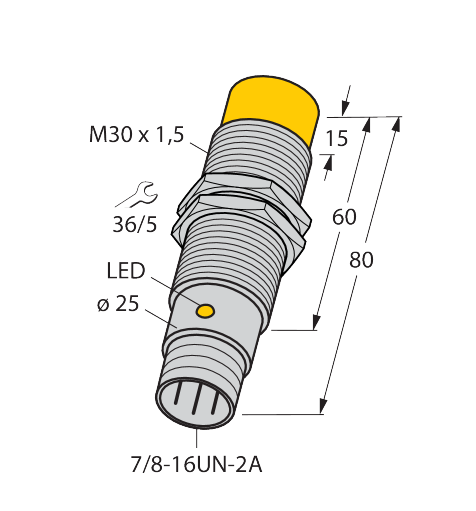

NI20U-GT30-AP6X-B1141/S332

Order ID no. 1646248

Special features: uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Electrical connection: Connector
Connector type: 7/8″
Design: Threaded barrel
Construction size: ⌀ 30 mm
Housing material: Metal
Housing quality: CuZn
Housing surface: PTFE-coated
Mounting conditions: Non-flush
Operating voltage: DC
Output function: PNP
Protection class: IP68
Quality active face: PBT
Rated switching distance (mm): 20
Switching element function: NO contact
Switching frequency (kHz): 1
