Inductive Sensor

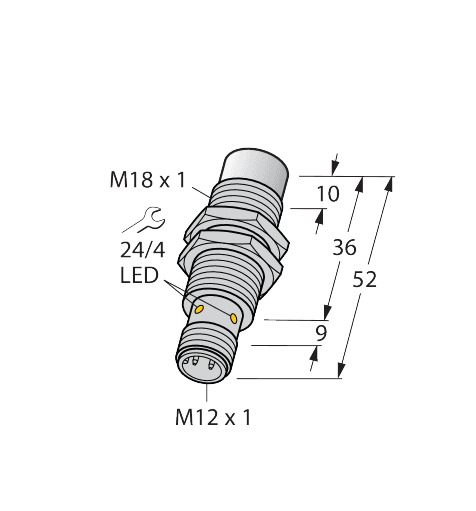

NI12U-EM18WD-AN6X-H1141/S1163

Order ID no. 1645353

Special features: uprox+, Wash down, Factor 1, Sn +, Resistant to magnetic fields, Pressure resistant
Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Electrical connection: Connector
Connector type: M12 x 1
Design: Threaded barrel
Construction size: ⌀ 18 mm
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Mounting conditions: Non-flush
Operating voltage: DC
Output function: NPN
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 12
Switching element function: NO contact
Switching frequency (kHz): 1
