WIM45-UNTL-0.3-BIM-UNT-0.2-LUAP6X3/S1144 | TURCK - Your Global Automation Partner

Linear position sensor For Analog Monitoring of Pneumatic Cylinders

WIM45-UNTL-0.3-BIM-UNT-0.2-LUAP6X3/S1144

Order ID no. 1536624

homeHome
Loading...

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable length (m): 0.3
Connector type: M8 x 1

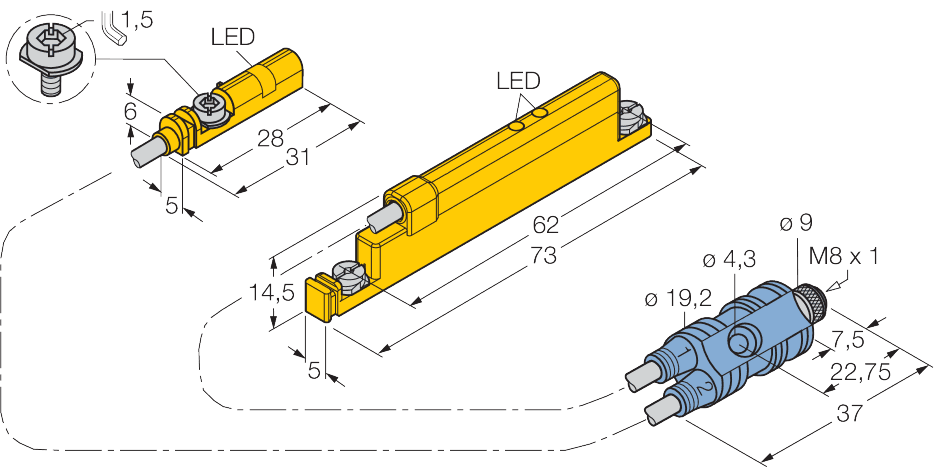

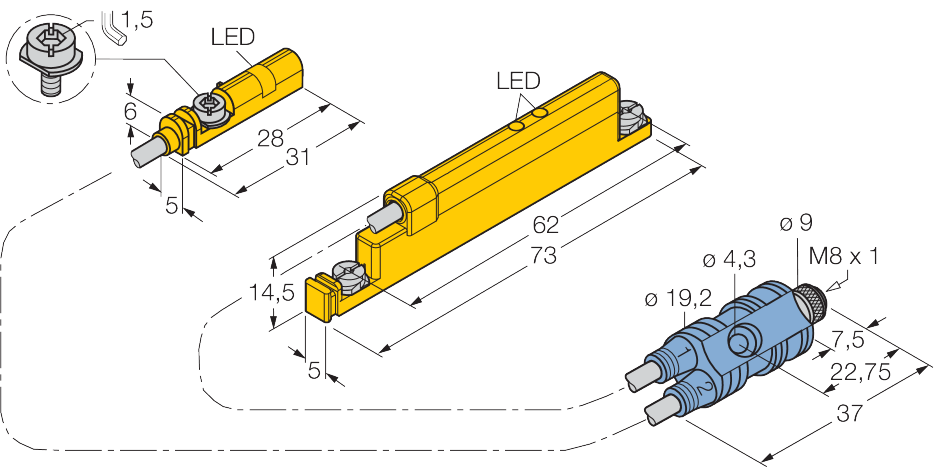

Dimensions: 73 mm x 5 mm x 14,5 mm
Electrical connection: Cable with connector
Housing material: Plastic
Housing quality: PA12-GF30/PP
Measuring principle: Magnetic
Measuring range (mm): 45
Operating voltage: DC
Output function: PNP/Analog output
Protection class: IP67
Switching element function: normally open NO
Switching frequency (kHz): 1

In Stock
Group	E1
List Price	4 070,00 kr

Item Total4 070,00 kr
