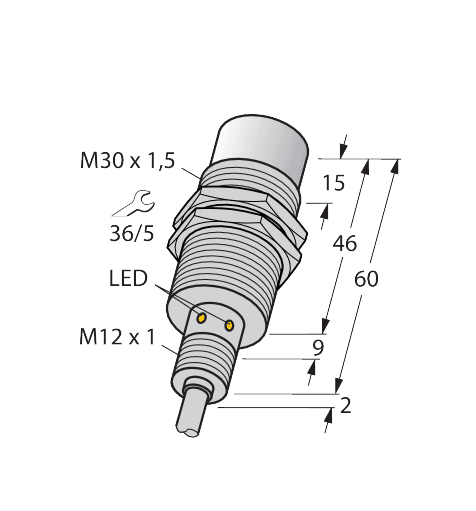

Inductive Sensor

NI30U-EM30WD-AP6X/S50 7M

Order ID no. 1534954

Special features: uprox+, Wash down, Sn +, Factor 1, Resistant to magnetic fields, Pressure resistant
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Cable length (m): 7
Electrical connection: Cable
Design: Threaded barrel
Construction size: ⌀ 30 mm
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Mounting conditions: Non-flush
Operating voltage: DC
Output function: PNP
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 30
Switching element function: NO contact
Switching frequency (kHz): 1
