BI10-Q14-AN45X2LD-0.075-DT04-3P | TURCK - Your Global Automation Partner

Inductive Sensor

BI10-Q14-AN45X2LD-0.075-DT04-3P

Order ID no. 100052204

homeHome
Loading...

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -40
Cable length (m): 0.075
Connector type: Deutsch DT04-3P
Design: Rectangular

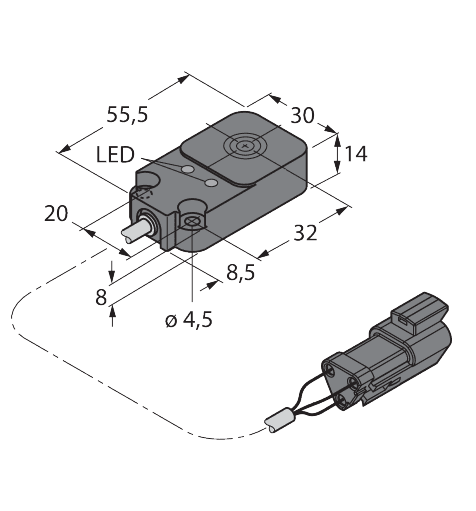

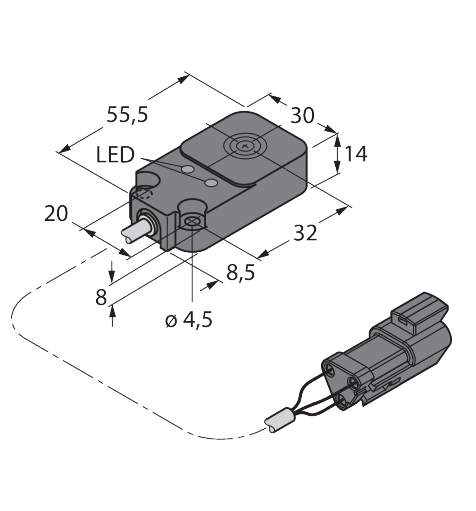

Dimensions: 52 mm x 30 mm x 14 mm
Electrical connection: Cable
Housing material: Plastic
Housing quality: PBT-GF30-V0
Mounting conditions: Flush
Operating voltage: DC
Output function: NPN
Protection class: IP68, IP69K
Quality active face: PBT-GF30-V0
Rated switching distance (mm): 10
Special features: Commercial vehicle specification, Sn +
Switching element function: NO contact
Switching frequency (kHz): 0.5

In Stock
Group	E1
List Price	894,00 kr

Item Total44 700,00 kr
