Preliminary Data Sheet

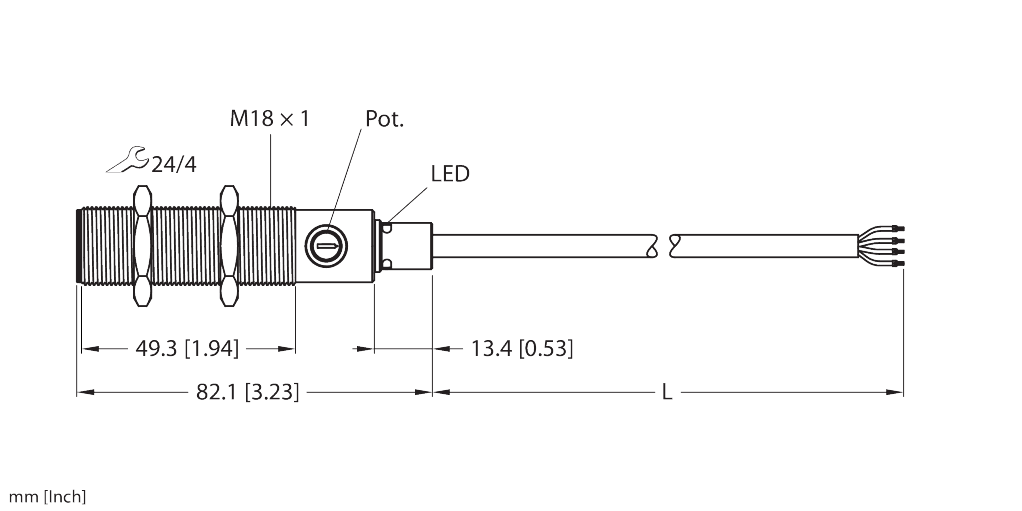

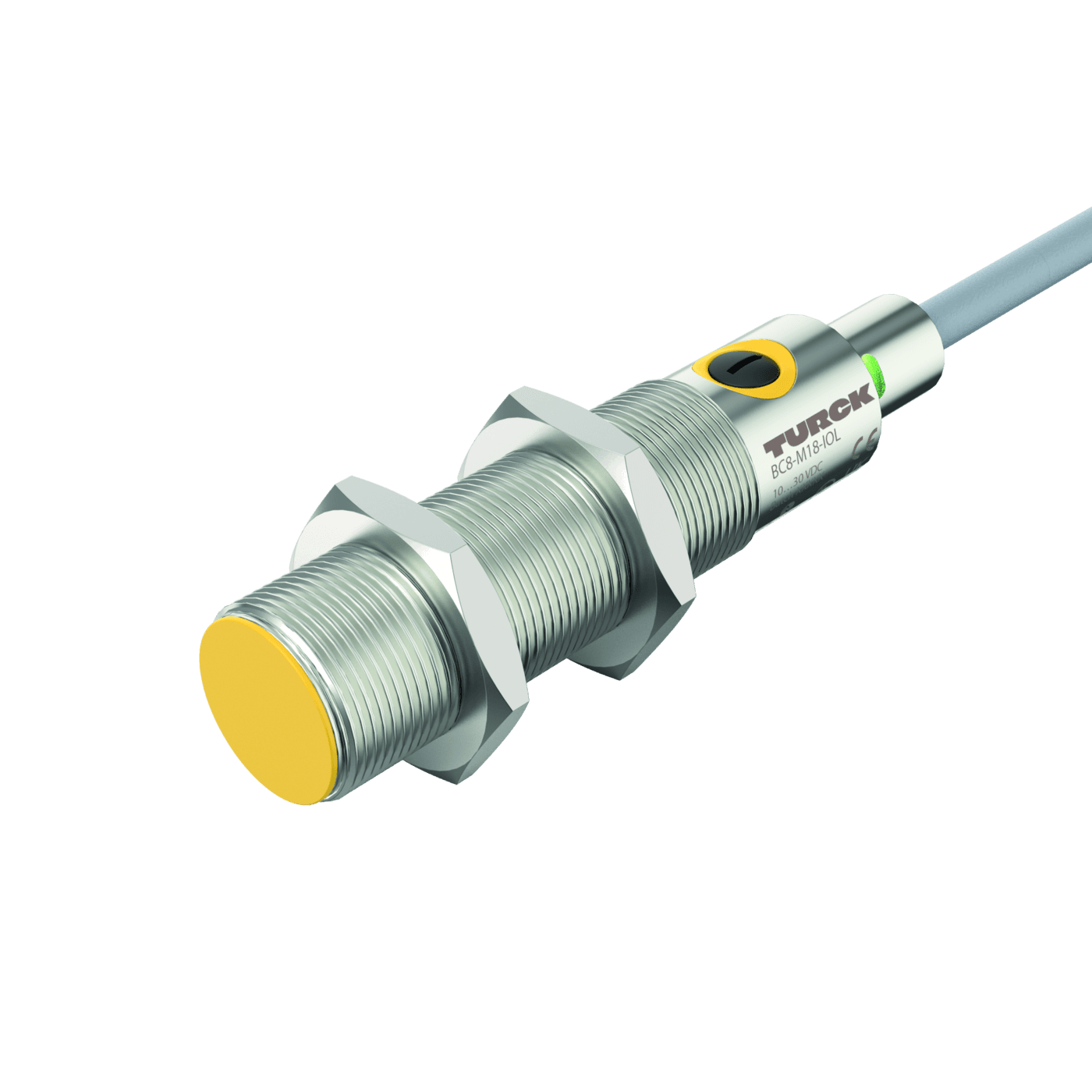

BC8-M18-IOL

Order ID no. 100050172

Ambient temperature max. (°C): 60
Ambient temperature min. (°C): -40
Cable length (m): 2
Communication protocol: IO-Link
Connector type: Open end
Construction size: ⌀ 18 mm
Design: Threaded barrel
Electrical connection: Cable
Function: Continuous level measurement, For dry granules, For highly viscous media, Level detection
Housing material: Metal/plastic
Housing quality: CuZn
Measuring principle: Capacitive
Media temperature max. (°C): 85
Media temperature min. (°C): -40
Medium: Bulk goods, liquids
Mounting conditions: Flush/Non-flush
Operating voltage: DC
Output function: PNP/NPN
Protection class: IP67
Quality active face: PA12-GF30
Switching element function: NO/NC programmable
