Home
Products

Incremental Encoder

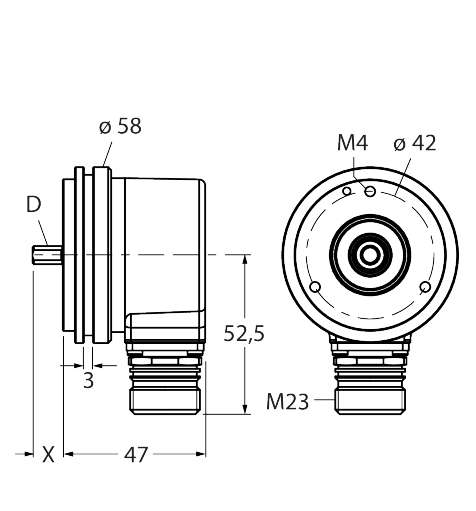

RI-10S8S-2B2500-12M23

Order ID no. 100006404

homeHome
Loading...

Base unit: PCE
EAN/UPC code: 4047101507829
Gross weight: 400
Height: 0
Length: 0
Net weight: 400
Dimension unit: MMT
Weight unit: GRM
Volume: 0
Width: 0
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -40
Electrical connection: Connector
Connector type: M23
Design: Solid shaft
Encoder line: Industrial-Line
Technology: Optical
Housing material: Die-cast zinc
Output function: Push-Pull/HTL
Output type: Incremental
Measuring principle: Optical
Protection class: IP67
Flange diameter (mm): 58
Flange type: Synchro flange
Protection class shaft: IP67
Resolution incremental (ppr): 2500
Shaft diameter D (mm): 8 mm
Shaft Type: Solid shaft

homeTurck-Shop
Others
RI-10S8S-2B2500-12M23

In Stock
Group	F3
List Price	SEK 4,429.00

Item TotalSEK 4,429.00
