Incremental Encoder

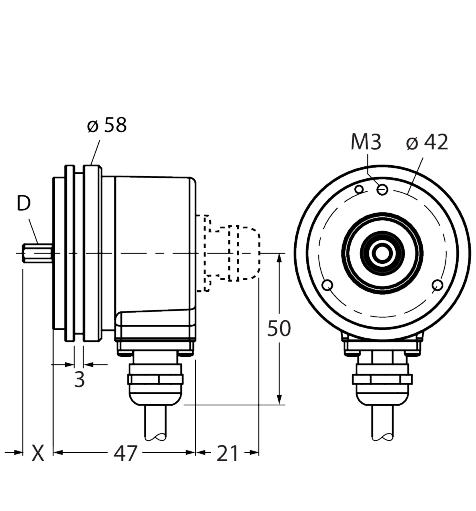

RI-10S10S-4B5000-C1M
Order ID no. 100003824
In Stock
Group
F3
List Price
SEK 3,894.00
Item Total
SEK 3,894.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Others
RI-10S10S-4B5000-C1M
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101486001
Gross weight
1.1
Height
0
Length
0
Net weight
1
Dimension unit
MMT
Weight unit
GRM
Volume
0
Width
0
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Electrical connection
Cable
Design
Solid shaft
Encoder line
Industrial-Line
Technology
Optical
Housing material
Die-cast zinc
Output function
RS422
Output type
Incremental
Measuring principle
Optical
Protection class
IP67
Flange diameter (mm)
58
Flange type
Synchro flange
Protection class shaft
IP67
Resolution incremental (ppr)
5000
Shaft diameter D (mm)
10 mm
Shaft Type
Solid shaft
