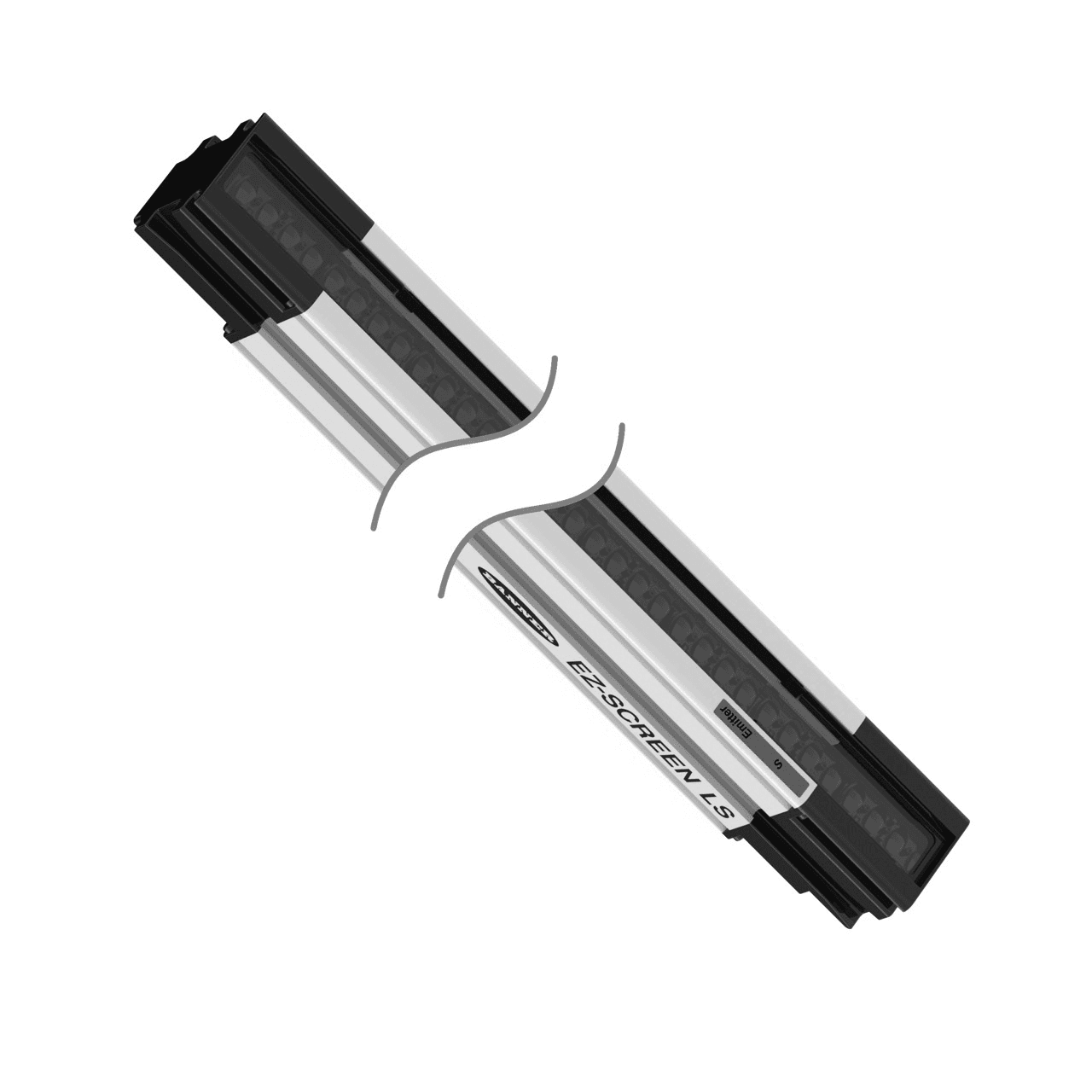

Safety Light Curtain
SLLCR40-1540-S
Order ID no. 3809130
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488073848
Gross weight
3538
Height
0
Length
0
Net weight
3538
Dimension unit
MMT
Weight unit
GRM
Volume
0
Width
0
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Cascadable
Yes
Electrical connection
Flat connector
Design
Rectangular
Scan field (mm)
1540

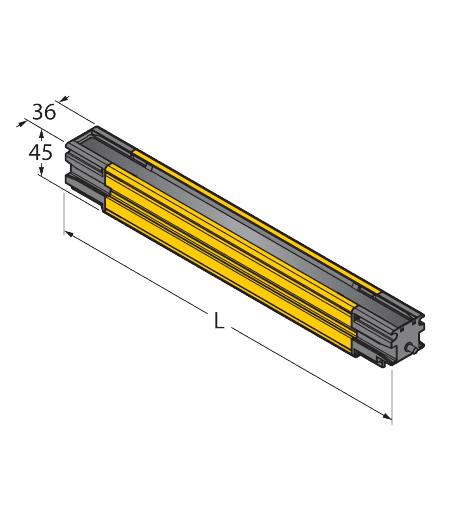

Dimensions
45 mm x 36 mm x 1545 mm
Housing material
Metal
Housing quality
AL
Housing surface
Black
Light type
IR
Start/Restart interlock
no
Number of beams
44
Function
Light screen
Optical resolution (mm)
40
Output function
2 x PNP
Protection class
IP67
Max. range (mm)
12000
Switching element function
2 x NO contact
With muting function
No
home
Turck-Shop
Machine Safety
Safety Light Curtains
SLLCR40-1540-S
Key Features
Cascadable
Yes
Scan field (mm)
1540
Number of beams
44
Optical resolution (mm)
40
In Stock
Group
F3
List Price
SEK 26,746.00
Item Total
SEK 26,746.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
