SLC4P14-160P44 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

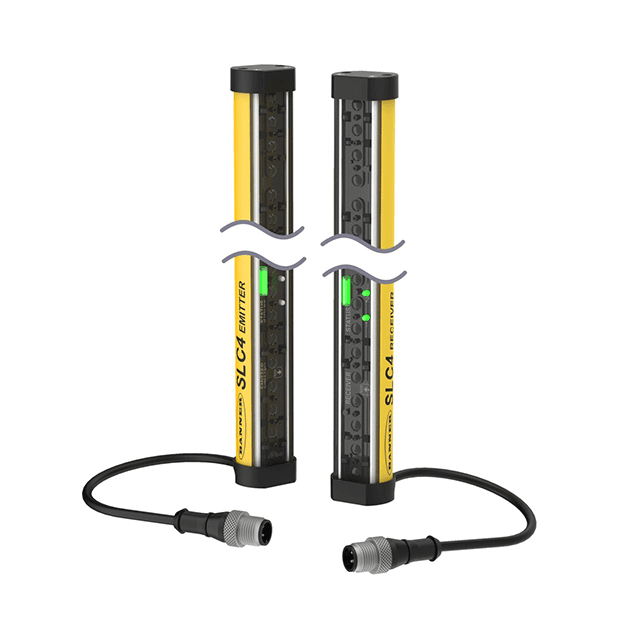

Safety Light Curtain Emitter/Receiver Pair
SLC4P14-160P44
Order ID no. 3804717
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Approvals
CE, cULus
Cable length (m)
0.3
Cascadable
No
Category acc. to ISO 13849-1:2008
4
Coding level/tamper protection
Uncoded
Connector type
M12 x 1
Design
Rectangular

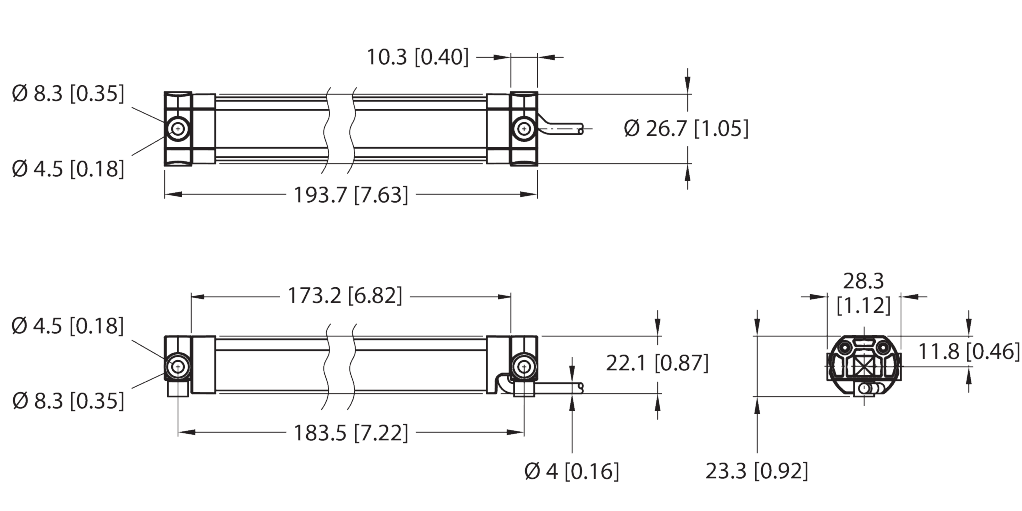

Dimensions
22,1 mm x 26,7 mm x 173,2 mm
Electrical connection
Cable with connector
Function
Light curtain
Housing material
Plastic
Housing quality
PC
Light type
IR
Max. range (mm)
2000
Optical resolution (mm)
14
Output function
2 x PNP
PL acc. to EN ISO 13849-1
Level e
Protection class
IP65
Scan field (mm)
160
SIL acc. to IEC 61508
3
Start/Restart interlock
no
Switching element function
NC contact
Wavelength (nm)
860
With muting function
No
Key Features
Cascadable
No
Scan field (mm)
160
Optical resolution (mm)
14
In Stock
Group
F3
List Price
7 218,00 kr
