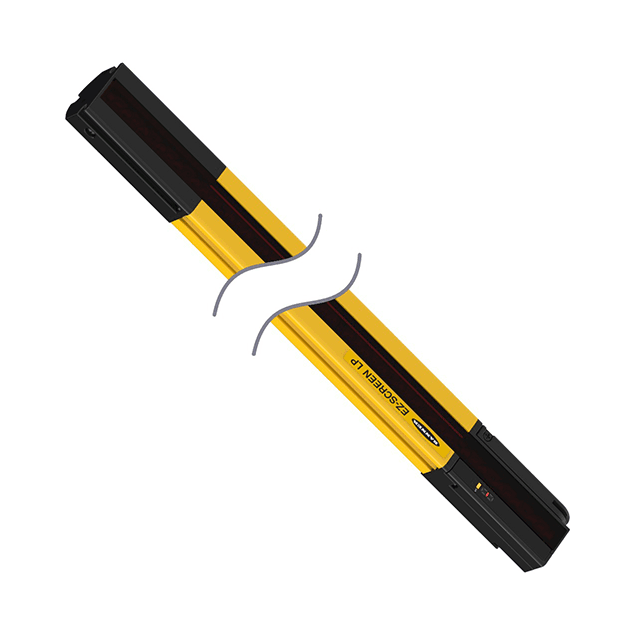

Safety Light Curtain
SLPCR25-970P8
Order ID no. 3083625
In Stock
Group
G1
List Price
SEK 26,038.00
Item Total
SEK 26,038.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488836252
Gross weight
1406
Height
0
Length
0
Net weight
1406
Dimension unit
MMT
Weight unit
GRM
Volume
0
Width
0
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
0
Cable length (m)
300
Cascadable
Yes
Electrical connection
Cable with connector
Connector type
M12 x 1
Design
Rectangular
Scan field (mm)
970
Dimensions
26 mm x 28 mm x 969 mm
Housing material
Metal
Housing quality
AL
Housing surface
Yellow polyester
Start/Restart interlock
adjustable
Number of beams
49
Function
Light screen
Optical resolution (mm)
25
Output function
2 x PNP
Protection class
IP65
Max. range (mm)
7000
Switching element function
2 x NC contact
With muting function
No
Key Features
Cascadable
Yes
Scan field (mm)
970
Number of beams
49
Optical resolution (mm)
25
