Radio Transmission System Transfer of I/O Data to Star Topology

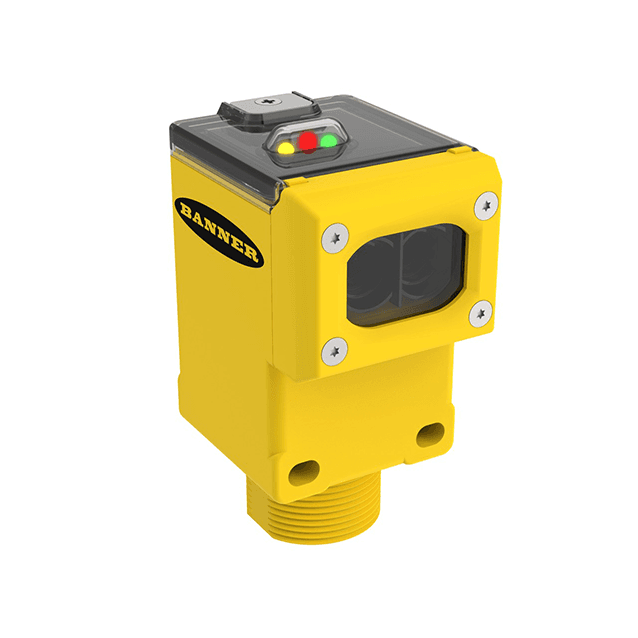

DX80N2Q45E
Order ID no. 3091011
In Stock
Group
F3
List Price
2 366,00 kr
Item Total
2 366,00 kr
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Antenna connection
Internal (wire loop)
Design
Rectangular

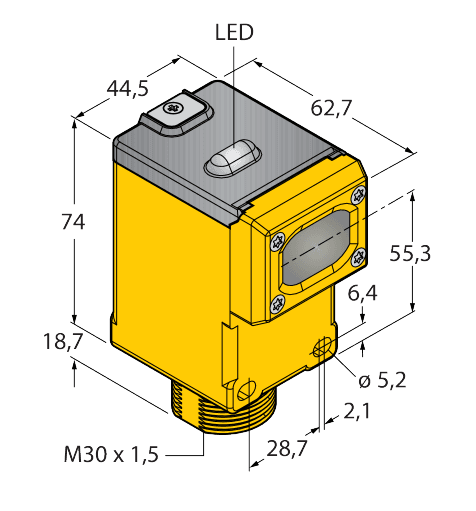

Dimensions
58,9 mm x 44,5 mm x 97,1 mm
Frequency band
2.4-GHz ISM band
Frequency range
2.402…2.483 GHz
Function
Opposed mode sensor
Housing material
Plastic
Housing quality
Lexan, PBT
Housing surface
Yellow
Light type
Red
Max. range (mm)
30000
Operating mode
Emitter
Operating voltage
DC
Protection class
IP67
Runs with battery
Yes
Special features
wireless
Wavelength (nm)
680
Key Features
Function
Opposed mode sensor
