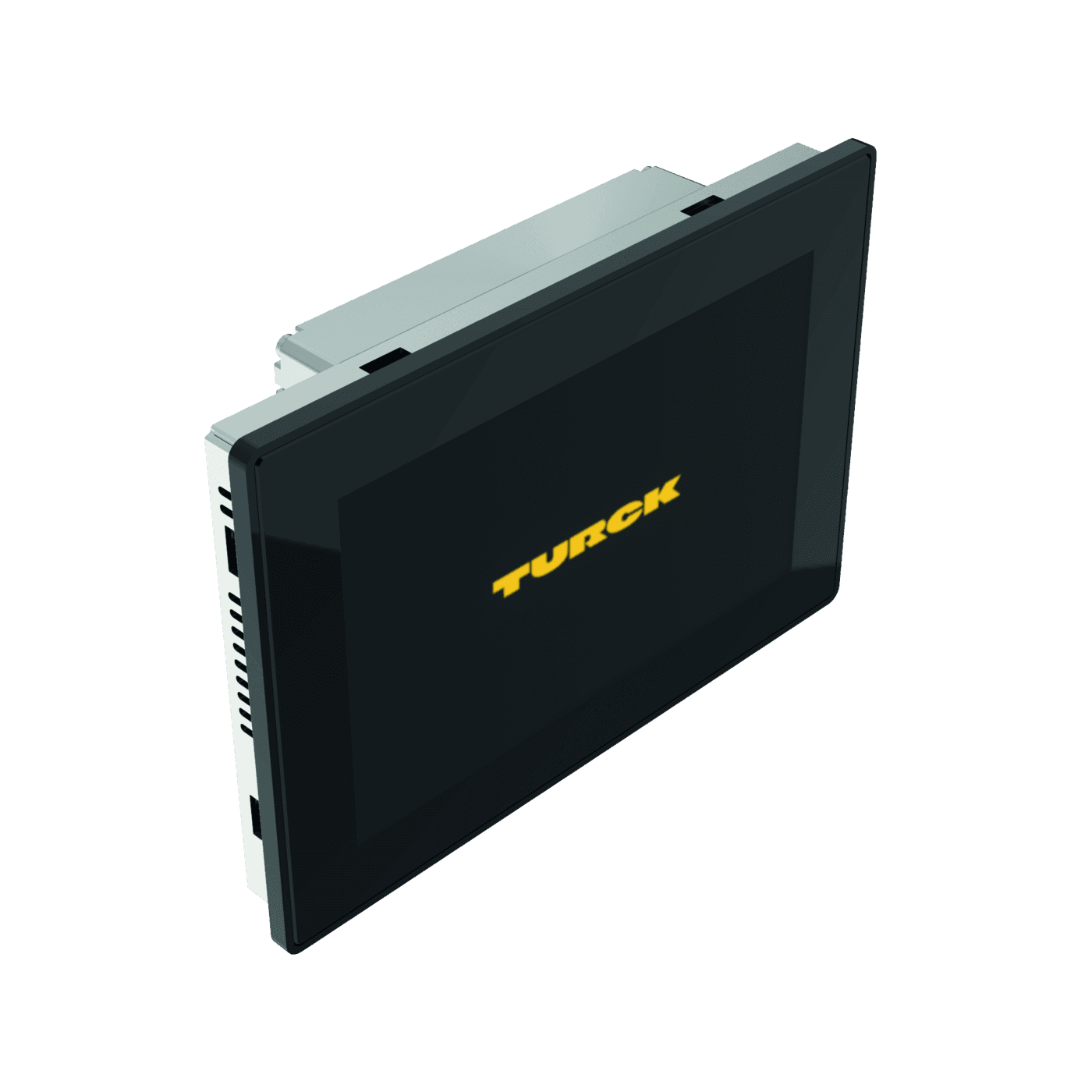

TX800 HMI/PLC Product Series

TX810-P3CV01

Order ID no. 100046994

Application area: Factory Automation
Approvals: CE, cULus, DNV
Device function: HMI/PLC
Device type: Cloud Gateway, Industrial Control
Diagonal screen size (″): 10.1
Dimensions: 197 mm x 282 mm x 56 mm
Dimmable: Yes
Fieldbus master: CANopen, EtherCAT, EtherNet/IP, Modbus RTU, Modbus TCP, PROFINET, SAE J1939
Fieldbus slave: Modbus RTU, Modbus TCP, PROFINET
Programming: CODESYS V3
Protection class: IP66 front, IP20 rear
Radio interface: Optionally expandable
Touchscreen: Capacitive, Glass front
