- Ambient temperature max. (°C)
- 70
- Ambient temperature min. (°C)
- -40
- Approvals
- CE, UKCA, UL
- Connection technology Ethernet
- 2 x M12, 4-pin, D-coded
- Connector type
- M12 x 1
- Design
- Rectangular

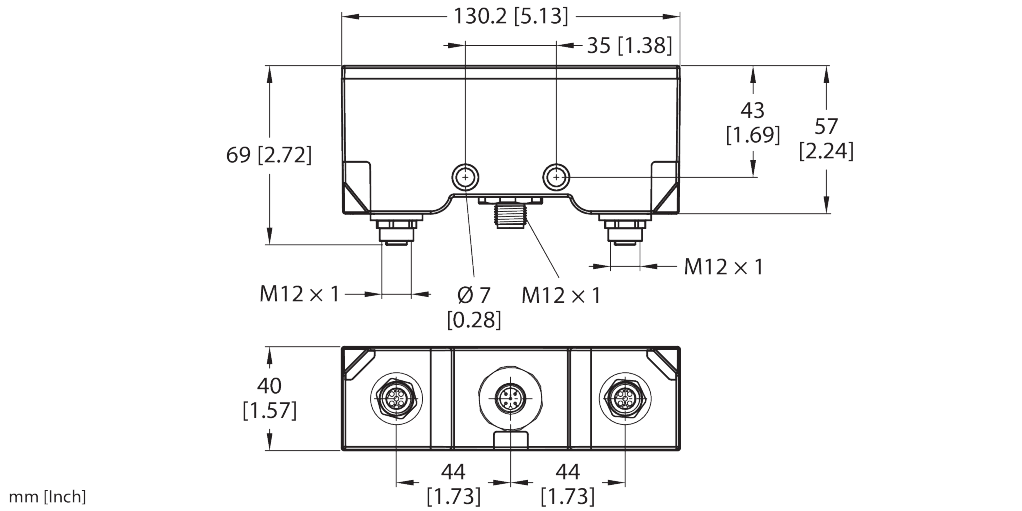

- Dimensions
- 130 mm x 69 mm x 40 mm
- Housing material
- Plastic
- Housing surface
- Black
- Mounting conditions
- Non-flush
- Network protocol
- EtherNet/IP, Modbus TCP, PROFINET
- Operating voltage
- DC
- Protection class
- IP69K front, IP67 rear
- Quality active face
- PPS-GF30
- Radio approvals (HF)
- EU/RED: Europe, FCC: USA, IC: Canada, KC: South Korea, MIC: Japan, UK/SI 2017/1206: United Kingdom
- Radio communication and protocol standards
- ISO 15693, NFC Type 5
- Signal type
- RFID
- Switching element function
- Read/Write
- Technology
- HF RFID
- Transmission rate Ethernet
- 10/100 Mbps
- Voltage supply connection
- 1 × M12, A-coded
