Module Rack for the DPC System

DPC-49-4RMB/SY

Order ID no. 6882025

Ambient temperature max. (°C): 60
Ambient temperature min. (°C): -20
Application: Data
Connection technology signal: Screw terminal
Device type: Module Racks

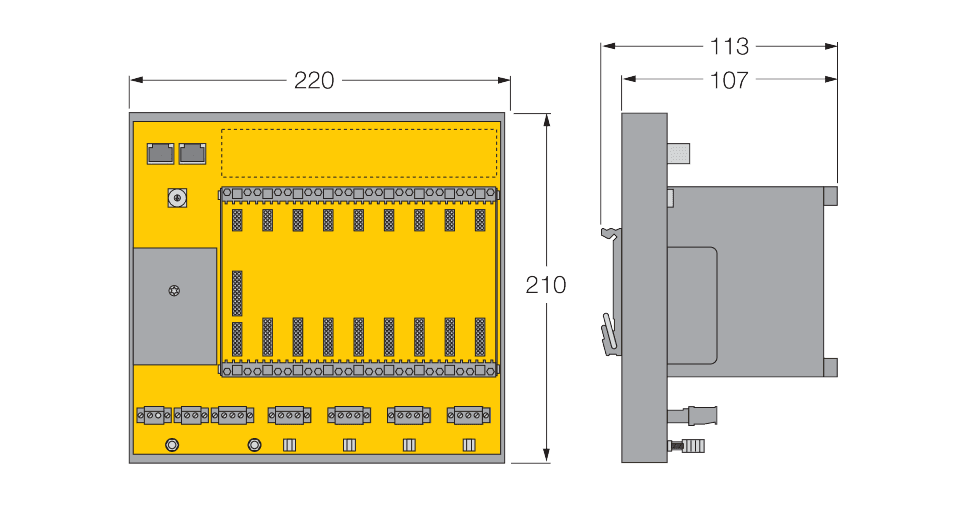

Dimensions: 210 mm x 220 mm x 113 mm
Electrical connection: Removable terminal block, reverse polarity protected, screw connection
Housing material: Aluminium
Installation area: non-Ex
Network protocol: FOUNDATION fieldbus
Number of channels: 4
Protection class: IP20
